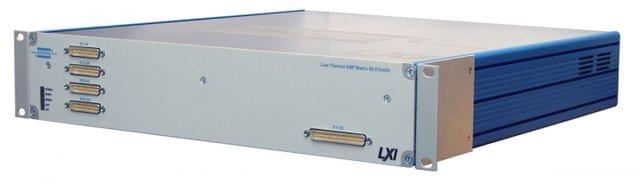

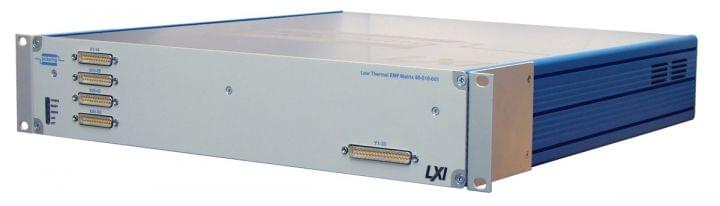

LXI 1-pole 42x33 Low Thermal EMF Matrix - 60-510-002

The 60-510 is a high density 1-pole matrix module controlled via LXI. It has excellent thermal stability and substantially reduced thermal EMF figures when compared to a conventional switching matrix. Typical applications include signal routing in ATE, selecting thermocouple inputs, switching amplifier gain circuits and high accuracy DC micro-volt measurements. Ruthenium reed switches are used because of their good low level switching capability. They also have a very long life with excellent contact resistance stability, minimal wetting current and low thermal offset. The 60-510 is designed in accordance with the LXI Standard 1.4 and is supplied in a 2U high, full rack width case with 500mm depth.

Features
  • Single Pole Matrix Available in Sizes Between 14x33 and 56x33
  • Low Thermal Offset
  • Excellent Low Level Switching Characteristics
  • Minimize Cost Using Partially Populated Configurations
  • Switch Up To 150VDC/100VAC With 10W Max Power
  • Maximum Carry Current of 1A
  • 2U Rack Mountable Enclosure
  • LXI Standard 1.4 Compliant
  • IVI and Direct I/O Drivers
  • Supported by eBIRST Switching System Test Tools
Platform LXI
Switch Type Reed
X Size 42
Y Size 33
Banks 1
Poles 1
Max I (A) 1
Max V DC 150
Brand Pickering Interfaces
