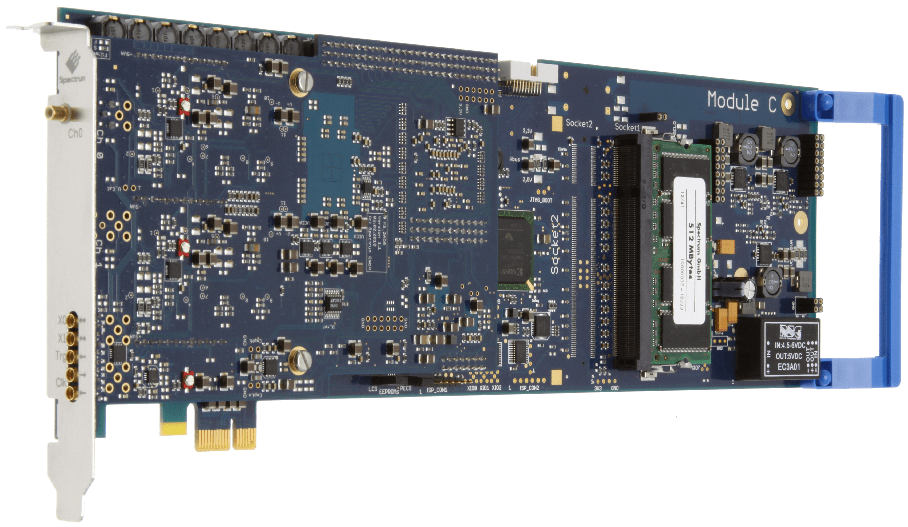

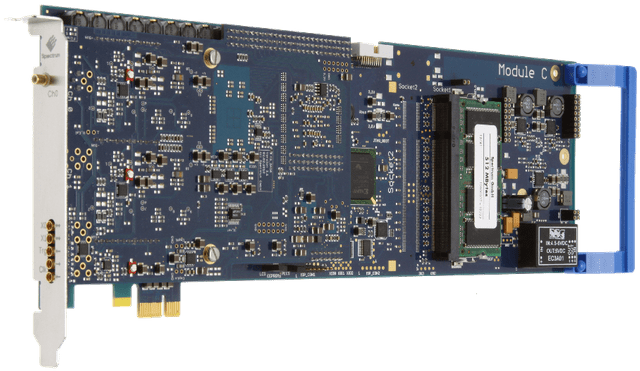

1Ch,8 Bit,500 MHz,1 GS/s,PCI Express x1, Digitizer, M3i.2130-Exp

The M3i.21xx Express series offers 4 different versions ranging from 250 MS/s up to 1 GS/s with one or two channels. The powerful analog section has been designed for highest bandwidth together with best signal quality and a versatile highly configurable amplifier section. An extremely low dead time between segments in Multiple Recording mode specifies this card for fast repeating signals like LDA/PDA, RADAR or Ultrasound applications.

In contrast to the parallel PCI buses PCI Express slots contain serial point to point connections. Each connection pair (lane) is able to reach a burst connection speed of 250 MBytes/s. The Spectrum PCI Express cards base on the most commonly used x1 lane slot type. One advantage of the PCI Express technology is the direct connection of each slot allowing a full transfer bandwidth for each single card. On the software side there is no difference between PCI/PCI-X or PCI Express. PCI Express is the bus standard for PC based systems for the next couple of years. Today's State-of-the-art motherboards normally have a couple of PCI Express slots but only one or two PCI-X slots. Spectrum's PCI Express x1 cards can be used in any standard PCI Express slot be it x1, x4, x8 or x16. Only some dedicated PCI Express graphics slots may not work.

  • 1Ch,8 Bit,500 MHz,1 GS/s,PCI Express x1, Digitizer
  • Simultaneously sampling on all channels
  • Separate monolithic ADC and amplifier per channel
  • Programmable input offset +/-100%
  • Up to 2 GSample on-board memory
  • 512 MSample standard memory installed
  • 8 input ranges: +/-50 mV up to +/-10 V
  • Edge, window, re-arm, OR/AND trigger
  • Synchronization of up to 8 cards
  • PCIe x1 Gen1 Interface
  • Works with x1/x4/x8/x16* PCIe slots
  • Software compatible to PCI
  • Sustained streaming mode up to 160 MB/s
Platform PCI Express x1
Analog-In 1
Digital-In 0
Resolution 8 Bit
Samplerate (Max) 1 GS/s
Bandwidth 500 MHz
Input Ranges +/-50 mV to +/-10 V
Impedance 50 Ohm / 1 MOhm
Coupling AC/DC
Input Type SE
User Offset +/-100%
Memory (Max) 512 MS (2 GS)
Brand Spectrum Instrumentation GmbH
