The M4x.66xx-x4 series arbitrary waveform generators (AWG) deliver the highest performance in both speed and resolution. The series includes PXI Express (PXIe) cards with either one, two or four synChronous Channels. The large onboard memory can be segmented to replay different waveform sequences. The AWG features a PCI Express x4 Gen 2 interface that offers outstanding data streaming performance. The interface and Spectrum’s optimized drivers enable data transfer rates in excess of 2.8 GB/s so that signals can continuously replayed at a high output rate. While the cards have been designed using the latest teChnology they are still software compatible with the drivers from earlier Spectrum waveform generators. So, existing customers can use the same software they developed for a 10 year old 20 MS/s AWG card and for an M4x series 625 MS/s AWG.

The PXIe digitizers feature a interface with PCI Express x4 Gen 2 interface that offers outstanding data streaming performance. The interface and Spectrum’s optimized drivers enable data transfer rates in excess of 1.7 GB/s so that signals can be acquired, stored and analyzed at the fastest speeds. While the cards have been designed using the latest teChnology they are still software compatible with the drivers from earlier Spectrum digitizers. So, existing customers can use the same software they developed for a 10 year old 200 kS/s multi-Channel card and for an M4x series 500 MS/s high resolution digitizer!

Application Examples

  • Telecommunications
  • ResearCh and Development
  • Stimulus-Response Tests
  • Semiconductor Tests
Features

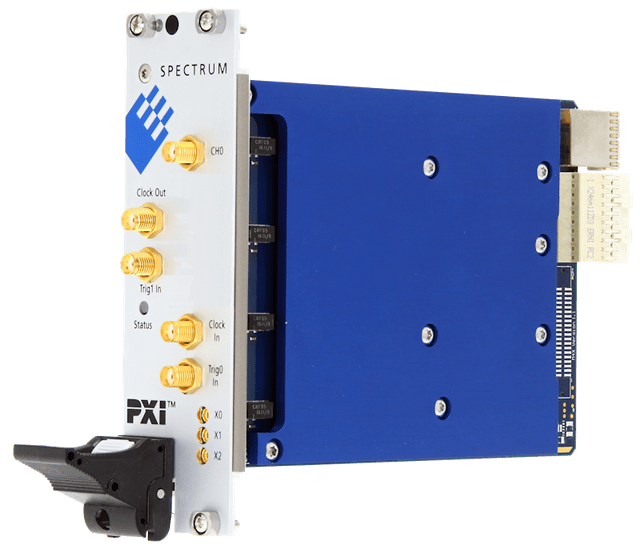

  • 200 MHz,625 MS/s,2 GS,2Ch PxI Express AWG
  • Simultaneous signal generation on all Channels
  • Output level :�160 mV to :�5 V (625 MS/s) or :�4 V (1.25 GS/s) into High Impedance
  • Output level :�80 mV to :�2.5 V (625 MS/s) or :�2.0 V (1.25 GS/s) into 50 Ohm
  • Fixed trigger to output delay
  • Single-Shot, Loop, Gated, Sequence Mode
  • Marker Output, Digital Outputs
  • PXIe x4 Gen 2 Interface
  • Sustained streaming mode more than 1.7 GB/s
  • Works with all PXIe and PXI hybrid slots
  • PXIe 3U format, 2 slots wide
Platform PXI Express
Analog-Out 2
Digital-Out 3
Resolution 16 Bit
Samplerate (Max) 625 MS/s
Bandwidth 200 MHz
Memory (Max) 2 GS
Brand Spectrum Instrumentation GmbH
