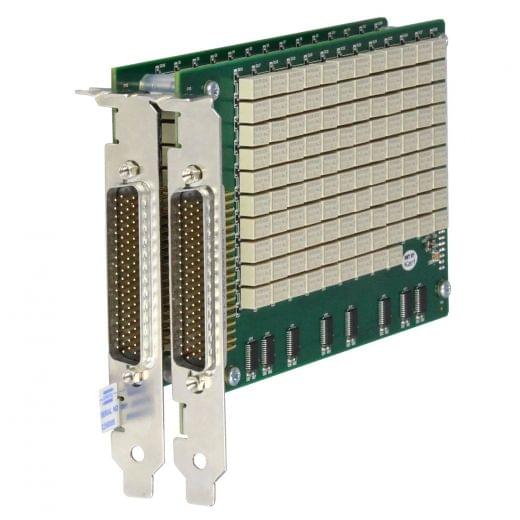

Single Bus 64-Channel 2A PCI Fault Insertion Switch - 50-190-101
This PCI fault insertion switch range is available with 75, 64 or 36 channels. It is primarily designed for the simulation of fault conditions in automotive & avionics applications involving the reliability testing of safety critical controllers. The Stimulus/Measurement to UUT path is suitable for supporting CAN and FlexRay bus systems. This range is designed to be able to insert different types of fault conditions between the test fixture and the equipment under test. Thru relays on each channel allow the simulation of an open circuit between the stimulus/measurement connection and the UUT connection. Fault insertion buses allow any channel to be shorted to any other channel and also enable any channel to be connected to an external fault condition.
Features
  • 75, 64 or 36 Fault Insertion Channels
  • Suitable for Automotive/Avionics ECU Burn-in/Endurance Test Applications
  • High-Density Low-Cost Solution
  • Simulation of Various Types of Electrical Faults, Enabling Rigorous Fault Testing
  • High Relay Closure Count
  • Fault Bus MUX for Selecting External Fault Conditions
  • 2A Hot or Cold Switching
  • Switch up to 165VDC/115VAC with 60W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by eBIRST Switching System Test Tools
Platform PCI
Switch Type EMR
Fault Buses 1
Max I (A) 2
Max V DC 165
Channels 64
Brand Pickering Interfaces
