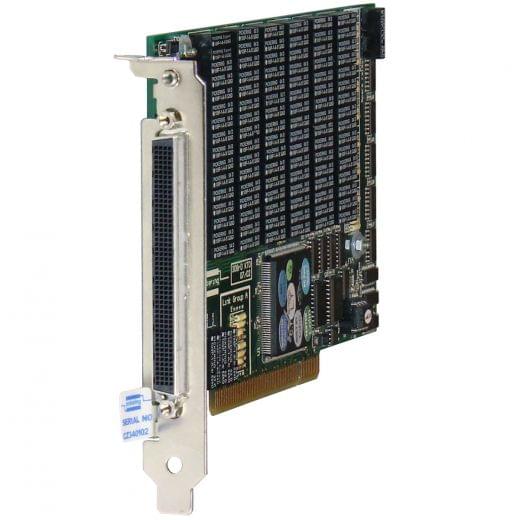

PCI 24-channel 2-pole Very High Density Multiplexer - 50-671-022-Q/24/2

The 50-671 very high density multiplexer is available in 24-channel 2-pole format with 4 separate banks. Typical applications include signal routing in ATE and data acquisition systems. The 50-671 multiplexer may be operated as a conventional multiplexer with break-before-make action when a new channel is selected. In addition multiple channels may be simultaneously selected

  • Very High Density Multiplexer
  • 4 Banks, 24-Channel, 2-Pole
  • Uses High Reliability Pickering Reed Relays
  • Switch Up To 100V, 1.2A With 20W Max Power
  • Automatic Isolation Switches Reduce Capacitive Loading in Large Systems
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by eBIRST Switching System Test Tools
  • Fast Operating Speed <500us
Platform PCI
Switch Type Reed
Poles 2
Max I (A) 1.2
Max V DC 100
Channels 24
Brand Pickering Interfaces
