LXI 20GHz, Single 4x4, Terminated Microwave Matrix - 60-751-144-B

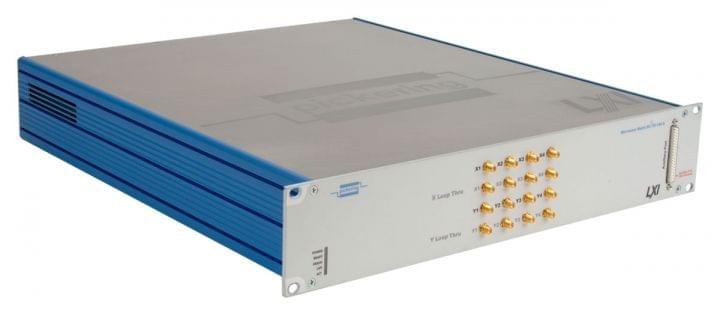

The 60-751-144-B is a single4x4 20GHz microwave matrix with internal termination. It is part of the 60-750/751 range of LXI Microwave Switches controlled through an LXI compliant Ethernet connection. It is available in a variety of configurations and frequencies up to 20GHz (60-751). The matrix is characterized for 50 ohm applications, for 75 ohm versions please consult your local sales representative. The 60-750/751 is supplied in a 2U full rack width enclosure, providing a compact solution that is easily mounted in a rack for ATE systems or for use on the bench.

Features
  • Versatile Microwave Matrix Switching Platform
  • Versions Available up to Dual 4x4
  • Loop Thru Options For Easy Expansion
  • Internally Terminated Versions
  • Up to 20GHz Bandwidth
  • Low Loss
  • Equal Loss on Each 4x4 Matrix
  • 50 Ohm Impedance
  • Auxillary Port For External Control of Relays
  • Custom Versions Available on Request
  • LXI Standard 1.4 Compliant
Type Microwave Matrix
Platform LXI
Function Matrix
Z (Ohm) 50
X Size 4
Y Size 4
Banks 1
Max f (MHz) 20000
Brand Pickering Interfaces
