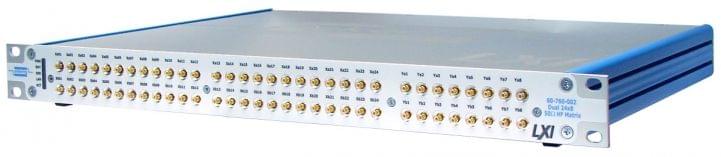

The 60-760 is a Dual 24x8 HF Matrix Module suitable for switching frequencies up to 50MHz. It has an impedance of 50 Ohm and uses SMB signal connectors, or with a larger case size, BNC Connectors. It is designed to provide simple and scalable switching for radio frequencies and is intended for the easy construction of high performance bidirectional matrix switching systems. Software configuration allows the 60-760-002 to be set as a dual 24 by 8 matrix, a single 48 by 8 matrix and other configurations.

Features
  • Single or Dual 24x8 50 Ohm HF Matrix
  • Software Configurable As 48x8 Video Matrix
  • 50MHz Bandwidth, Useable to 100MHz
  • High Density SMB Coaxial Connectors
  • Also Available With BNC Connectors
  • Rack Mountable Enclosure
  • LXI Standard 1.4 Compliant
  • Program via Windows DLL or IVI Driver
Type High Frequency Matrices
Platform LXI
Function Matrix
Z (Ohm) 50
X Size 24
Y Size 8
Banks 1
Max f (MHz) 100
Brand Pickering Interfaces
