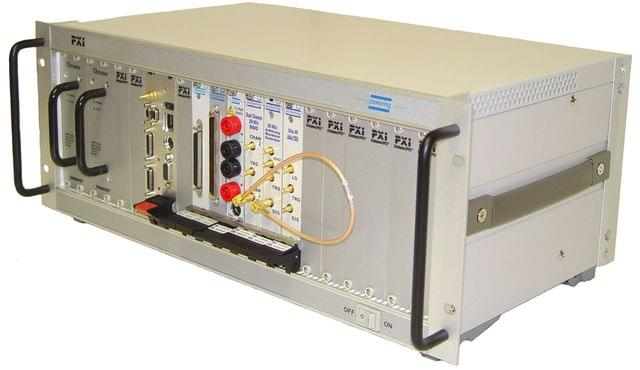

8-slot-3u-350w-pxi-chassis-40-908-001

Designed for applications such as office or laboratory environments where acoustic noise levels are critical.

This PXI chassis includes all the features and performance required by version 2.1 of the PXI standard and supports a control interface or embedded controller and up to seven more 3U peripheral modules. Mechanical expansion space on the right hand side allows the chassis to accept multi-slot modules, such as the BRIC, while only occupying one electrical slot.

The 40-908 chassis can be controlled from a PC using our PXI Remote Control Interface Kits. It is fitted with three 55cfm fans to ensure efficient cooling of the chassis and modules.

Each power supply is capable of supplying entire system power, allowing power supply replacement without interrupting system operation. Power supply voltage and fault monitoring is through front panel LEDs.

Key Features

  •  High performance 8 slot PXI/cPCI backplane
  •  Dual 175 Watt power supplies
  •  Power supplies are hot swap capable
  •  Voltage monitoring included
  •  Low profile rugged enclosure
  •  Low audible operating noise
  •  Mechanical expansion for multi-slot modules
  •  3 year warranty
Features
  • High performance 8 slot PXI/cPCI backplane
  • Dual 175 Watt power supplies
  • Power supplies are hot swap capable
  • Voltage monitoring included
  • Low profile rugged enclosure
  • Low audible operating noise
  • Mechanical expansion for multi-slot modules
Overall Size 4U Full Rack
Number of Power Supplies 2
Power Rating 350W
PXI Slots 8
Platform PXI
Brand Pickering Interfaces
