DC-1GHz75Ohm,1.0/2.3, PXI 4xChangeoverSwitch, 40-710-734
Product Code: 40-710-734
Brand: Pickering Interfaces
Share this
Description

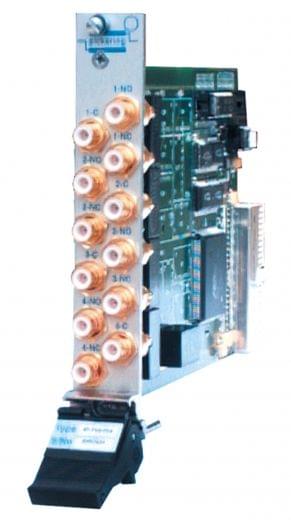

Model 40-710 RF switching card has a bank of 4 individual high performance RF changeover switches (50 or 75 Ohm, Bi-directional) with very low insertion loss, suitable for handling signals up to 2.5GHz. Applications include aerial switching, routing high frequency signals into oscilloscopes and analysers. Available with a choice of connectors: SMA, SMB and Siemens 1.0/2.3 versions. BNC versions are also available with reduced bandwidth and 2 PXI slot occupancy. The 75 Ohm versions are suitable for high frequency video and telecommunication signals up to 1GHz.
Specifications
| Platform | PXI |
| Function | Relay |
| Z (Ohm) | 75 |
| Switch Type | EMR |
| Banks | 1 |
| Frequency range | DC - 1GHz |
| Channels | 4 |
| brand | Pickering Interfaces |
