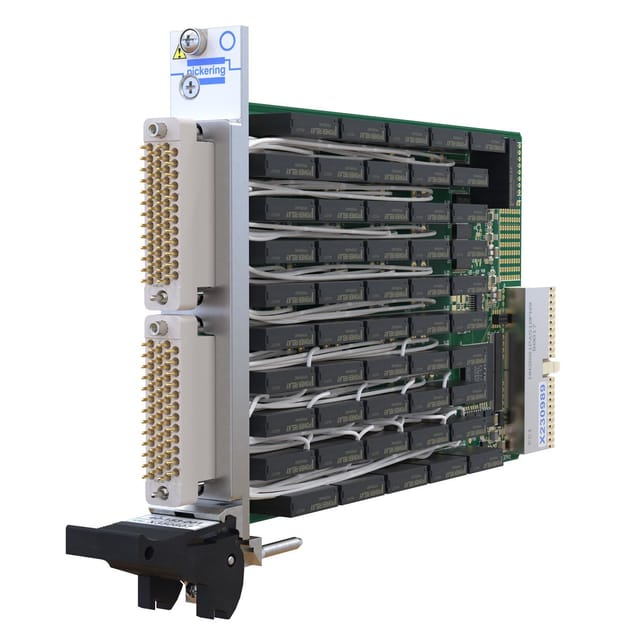

PXI/PXIe Power Relay Module, 50xSPST, 5 Amp, 50-Pin SGMC Connectors


The 40/42-153-001 is a PXI/PXIe high density power relay module with 50xSPST switches rated at 5A. User connection is via 2x50-pin SGMC male connectors. The 40/42-153 range is available in 18, 25, 36 or 50 SPST configurations with or without hardware interlock. Electro-mechanical power relays are used which are suitable for switching loads up to 5A at 250VAC.

Power Relay Modules are intended for switching heavy AC or DC loads or for controlling large external relays, contactors and solenoids. The 40/42-153 is suitable for applications requiring switching of either mains voltage or DC current.

  • Available as a PXI or PXIe Module
  • Up to 50 x SPST Power Relays Per Module
  • Available With Optional Hardware Interlock
  • Hot Switch up to 250 VAC, 5 A
  • Cold Switch up to 400 VDC/250 VAC Peak
  • Maximum Power Handling 150 W/1250 VA
  • Drivers supplied for Windows and Linux, plus support for Real-time systems
  • PXI Version Supported by PXI or LXI Chassis
Platform PXI/PXIe
Switch Type EMR
Max I(A) 5
Max V DC 400
Poles 1
Relays 50
Relays Contacts SPST
