PXIe 12-slot Chassis

Product Information

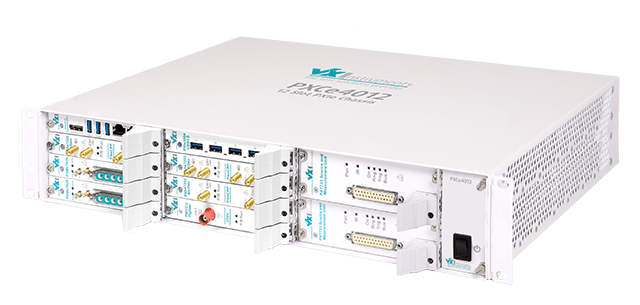

To reduce space in modern test systems the PXCe4012 features a very compact 2U 19" design.
The following slots are available:

    • 1 PXI Express System Controller Slot,
    • 4 PXI Express Peripheral Slot,
    • 7 PXI/PXI Express Hybrid Slots.

This provides the user the highest flexibility to configure his test system with PXI and PXI Express devices.

Also available is the PXIe3110 PXI Express Embedded Controller. Equipped with a modern Intel® Core™ i5 CPU and a big variety of interfaces, the controller is a perfect addition to the chassis. For detailed specifications, please check the data sheet of the PXIe3110 PXI Express Embedded Controller.

Features
  • 12-slot PXI Express chassis
  • 1 system slot, 7 PXI Express slots and 4 PXI/PXI Express hybrid peripheral slots
  • Very compact 2U 19" design
  • Four link PXI Express chassis
  • Easily replacable fan unit
PlatformPXI,PXI Hybrid
Overall Size2U
Power Rating360W
PXI Hybrid Slots4
PXIe Slots7
Number of Power Supplies1
BrandVX Instruments GmbH
