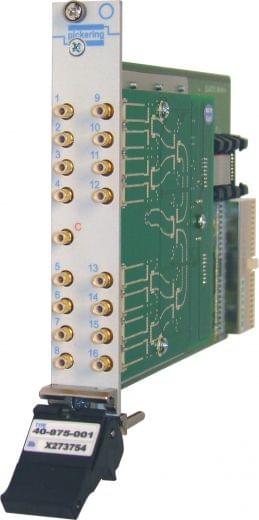

Single 16 to 1,3GHz,50Ohm,PXI RF Multiplexer,SMB, 40-875-001

The 40-875 Ohm provides a single 50 Ohm 16-channel RF MUX in a single PXI slot. The 40-875 Ohm has been designed to exhibit low insertion loss and VSWR through the use of modern RF relay technology at an affordable cost. The MUX has been carefully designed to ensure excellent and repeatable RF characteristics to frequencies of 3GHz. The design of the 40-875 Ohm minimizes the injection of noise and unwanted signals into the signal path by careful attention to the mechanical and electrical design.

  • 3GHz RF Multiplexer
  • Single 16 Channel Multiplexer
  • SMB or MCX Connector Versions
  • High Performance, Low Cost
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 50
Switch Type EMR
Banks 1
Poles 1
Frequency Range DC - 3GHz
Channels 16
Function Multiplexer
Brand Pickering Interfaces
