UHF/VHF 10 MHz-1 GHz
ViaLiteHD UHF/VHF fiber optic links are ideal for use in metro, mining and tunnel applications. The links can be used for moving WiMax, Tetra and UHF/VHF signals into areas that standard signals cannot reach.
- Ultra-wide dynamic range allows flexibility to seamlessly transmit varying signal levels easily
- 10-1000 MHz bandwidth
- Signals can be transmitted from 1 m to 50 km
- With Optical Splitters the signals can be point to multipoint
- Plug and play for rapid deployment
- Range of outdoor enclosures available
Dynamic range
The ultra-wide dynamic range allows systems to be easily put together without adjusting the signal levels of other equipment.
Low loss
The benefit of RF over fiber is the low loss in the system, which allows signals to be moved into buildings from antennas on the roof.
Lower cost than low-loss coax
To reach even reasonable distances within buildings or below ground, ultra low-loss coaxial cable would be required which is very expensive and in many cases costs more than the RF over fiber links
Features
- Ultra-wide dynamic range allows flexibility to seamlessly transmit varying signal levels easily
- 10-1000 MHz bandwidth
- Signals can be transmitted from 1 m to 50 km
- With Optical Splitters the signals can be point to multipoint
- Plug and play for rapid deployment
- Range of outdoor enclosures available
| Frequency range | 10MHz-1000MHz |
| Impedance | 50Ω |
| VSWR(typ) | 1:1.5 |
| Link gain (Tx /Rx) nom | +9 (-11 / +20)dB |
| Noise figure(typ) | 19 dB |
| SFDR(typ) | 110dB/Hz ⅔ |
| Industry | Broadcast, Military, General Use |

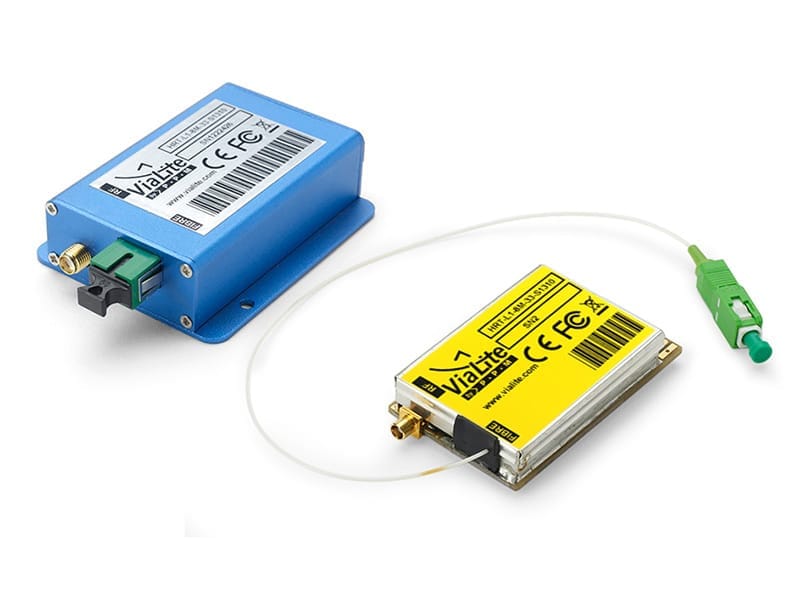

| Form Factor | Rack Chassis Card, Blue OEM Module, Yellow OEM Module |
| Brand | ViaLite Communications |
