ViaLite GPS Packages

The GPS Packages are designed for bringing GPS/GNSS signals into buildings for time servers, base stations, test equipment or rebroadcasting. Applications include data centers, “big data”, mines and tunnels, secure Government buildings/sensitive compartmented information facilities (SCIFs), locations without clear-sky access to GPS signals.

The example GPS packages shown on this page are simple point-to-point solutions. Both packages benefit from dual redundant power at the roof-top end and dual redundant power at the equipment room end. The equipment room end comes as a 1U chassis-based solution for integration into an equipment rack.

ViaLite offers many options in module form factor, SNMP M&C, wide area and local area signal splitting, signal redundancy and re-radiators. Please contact us for further details.

This package is available with the ODE-A4 GPS enclosure and a 1U rack chassis, or as a turnkey solution including the GPS antenna(s).

• A package to connect 1-4 GPS antennas over a wide area
• Designed to be pole- or wall-mounted
• Can supply 5 or 12 VDC for powering and monitoring of GPS antennas
• Weatherproof N-Type or TNC RF connectors
• Quad weatherproof fiber connector for plug and play installation

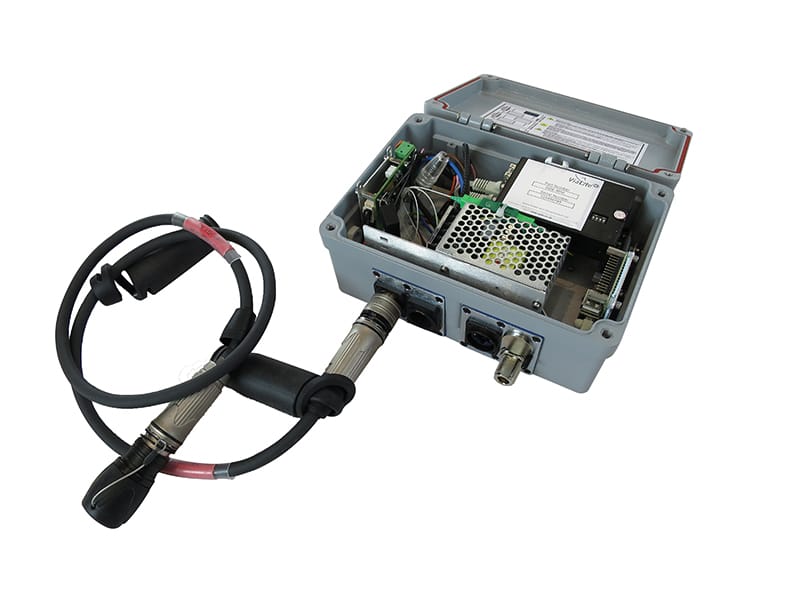

• The ODE-A4 GPS enclosure is suitable for all weathers, with optional heaters and solar shields
• Lightning protection options
• Further timing options available, including 1 PPS and 10 MHz
• AC/DC input
• NEMA 4 and IP65 rated

• Part No.	Description	Quantity
  Antenna / roof end
  76941	L1 GPS Antenna including lightning protection	1
  HAA-27-80-01-A1000	ViaLiteHD ODE-A4, Mains AC, 2 x PSU, Split Gland fibrt option	1
  HRT-G5-8M-10-S1310	ViaLiteHD RF Link, Transmitter (E/O), GPS & Galileo 1000-1800MHz, +5VDC antenna feed	1
  Equipment room end
  VHD-1U-RP2	ViaLite 1U Rack Package, 2 x PSU	1
  HRR-G1-8R-60	ViaLite GPS Rx Rack Module, GPS load simulator	1
