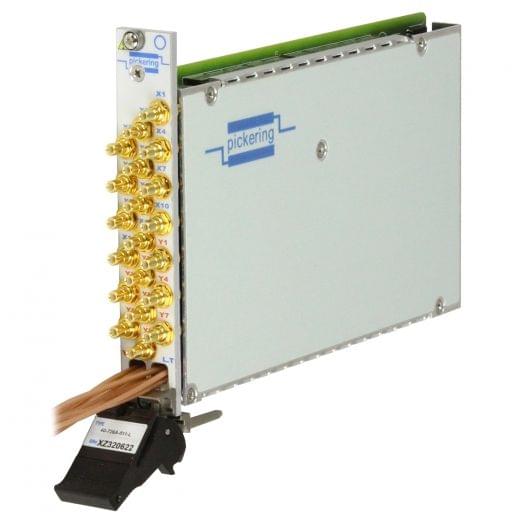

12x8 250MHz,75Ohm,SMB,PXI RF Matrix,Loop-Thru,40-726A-751-L

The 40-726A is a 12x8 RF Matrix Module suitable for switching frequencies up to 300MHz (50Ohm version). The 40-726A is available in either 50Ohm or 75Ohm versions with a choice of coaxial connectors. The module is designed to provide a simple and scalable bidirectional matrix for RF frequencies. Isolation Switches are located on all coaxial connectors, these disconnect the matrix from the external test fixture. This maximizes isolation and RF performance.

  • 12x8 RF Coaxial Matrix
  • Up to 300MHz Usable Bandwidth (50Ohm version)
  • 50Ohm and 75Ohm Versions Available
  • Easy To Use Loop Thru Options, enabling Simple Expansion via Built-In Cabling With No Hidden Expense
  • High Density SMB Coaxial Connectors
  • 75Ohm Version Suitable For Telecoms and High Quality Video Switching
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Switch Type RF Switch
Platform PXI
Z (Ohm) 75
X Size 12
Y Size 8
Max f (MHz) 300
Function Matrix
Banks 1
Brand Pickering Interfaces
