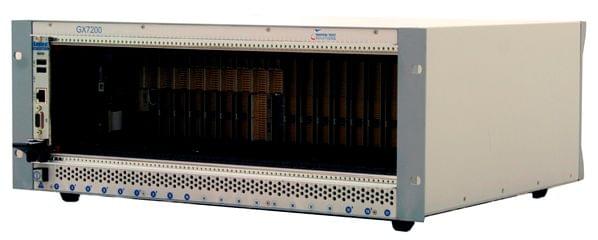

21 slot,3U,755w,PXIe chassis, GX7200

Description The GX7200 Series mainframes are 21-slot PXI chassis that can accommodate up to 20 instruments as well as a PXI Express controller (an embedded CPU or a PXI bus expander interface such as the MXI). The backplane architecture supports Gen 2 PCI Express bus signaling and the use of both x1 or x4 system controllers. By offering a combination of PXI-1, Hybrid, and Express slots, the GX7200 offers users the ultimate in flexibility for general purpose as well as high bandwidth test needs. Features A total of 755 watts of system power is available for the GX72x0 / 72x2 series chassis and 1400 watts of system power is available for the high power, GX72x5 series chassis. Forced-air cooling for the chassis is provided by (4) 79 CFM fans located under the card cage with a dedicated fan supplying cooling for the system power supply. This cooling configuration, in conjunction with air plenums within the chassis, provides airflow for all module slots per the PXI specification and requires no additional rack space for inlet or outlet air. The GX7205 and GX7215 employ four 100 CFM fans located at the bottom of the card cage assembly with a dedicated fan for the system power supply. The GX7200 Smart Chassis supports the monitoring of slot temperatures and system power supply voltages as well providing the ability to program or map each PXI trigger line from one PCI segment to another. In addition, the user can program the temperature monitoring function for specific warning and shutdown limits as well as monitor and control fan speed. All user specific setups can be stored in non-volatile memory as a user configuration and can be used as the default setup for normal chassis operation. For applications requiring a mass interconnect interface and the means to route cables to/from the rear of the chassis, MTS offers the GX7202, GX7212, GX7205 and GX7215 models. These chassis include an integrated 2U cable tray, a hinged interface assembly that accommodates all popular mass interconnect devices, optional openings at the top & bottom of chassis for cable routing, and a recessed card cage (recessed by 2.5" or 4.5") providing up to 7" of space for interface wiring. Chassis Configuration Slot 1 is dedicated to the system controller (embedded or remote, using a PXI bus expander) and supports a x1 or x4 PXI Express controller. Slots 2, 9, 10 and 21 are x4 PXIe slots with slot 9 also supporting the PXIe system timing slot functions. Slots 3 - 8 and slots 19 & 20 are PXI hybrid slots. Slots 11 - 18 are PXI-1 slots. Software The chassis is supplied with the GxChassis software which includes a software library, driver, programming examples, a virtual panel application and documentation. The virtual panel provides a way to control, configure and display the smart chassis' features, including temperature monitoring, trigger line mapping, and power supply voltage monitoring. A 32/64-bit Windows DLL driver is provided with various interface files for accessing the DLL functions from programming tools and languages such as ATEasy, LabVIEW, C/C++, Microsoft Visual Basic , Delphi, and more. A User's Guide provides documentation that includes instructions for installing, using and programming the chassis. Support for Linux for the chassis is provided using a separate software package - GtLinux. Applications Automatic Test Equipment (ATE) Data Acquisition Process Control Production Test Scientific Applications Industrial Systems

  • 21 slot,3U,755w,PXIe chassis
  • 21 slots - supporting a 3U cPCI Express controller and 20 3U PXI or cPCI instruments
  • Flexible slot configuration offers 8 PXI-1, 8 Hybrid, and 4 PXIe slots
  • 4x4 PXIe lane architecture supports 8 GB/s system bandwidth and peer to peer communication
  • Integral Smart functions provide per slot temperature monitoring, system power supply monitoring, fan monitoring / control and PXI trigger mapping
  • 755W and 1400W system power supply configurations
Overall Size 3U
Number of Power Supplies 1
Power Rating 755W
Platform PXIe
PXI Slots 21
Brand Marvin Test Solutions Inc
