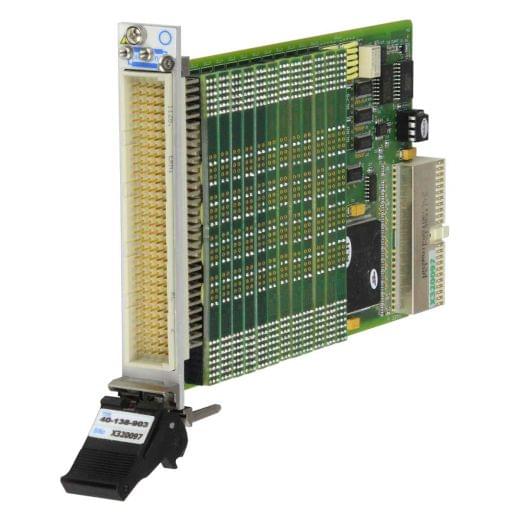

PXI Mixed Configuration Relay Module - 1 Cell Populated

The 40-138 2A Relay Module with 1 cells populated is a cell-based mixed configuration switching module suitable for applications requiring medium power switching with high density. It provides a broad selection of mixed relay types for greater flexibility and features 2A current capacity and voltages to 300VDC/250VAC. Mixed configurations are very useful for high density and/or low-cost applications where optimum usage must be made of all relays, and where there are very few PXI slots available.

Features

Versatile Cell-based Design Allows Slot-Saving High Density and Mixed Configurations
Mixed Relay Configurations With Any Combination of SPST, DPST, SPDT & DPDT
Maximum Current 2A Hot or Cold Switching
Switch up to 300VDC/250VAC and up to 60W Max Power
Reduced Cost Partially Populated Versions Available
VISA/IVI & Kernel Drivers Supplied for Windows
Supported by PXI or LXI Chassis

Platform	PXI
Relay Contacts	Mixed Configuration
Switch Type	EMR
Poles	Mixed Configuration
Max I (A)	2
Max V DC	300
Relays	Mixed Configuration
Brand	Pickering Interfaces
