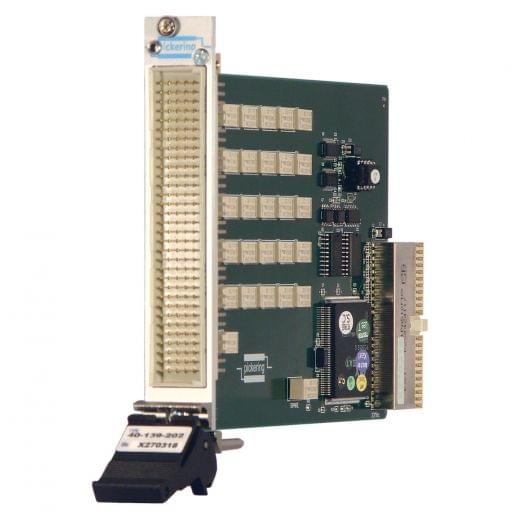

PXI 2A 26xDPDT Relay Module - 40-139-202

The 40-139 2A Relay Series is suitable for applications requiring medium power switching with high density. Featuring 2A current capacity and voltages to 300VDC/250VAC it is useful for cost critical applications.

Features
  • High Density Electro-mechanical Relay Module
  • 80 x SPST, 40 x DPST, 52 x SPDT & 26 x DPDT
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Relay Contacts DPDT
Switch Type EMR
Poles 2
Max I (A) 2
Max V DC 300
Relays 26
Brand Pickering Interfaces
