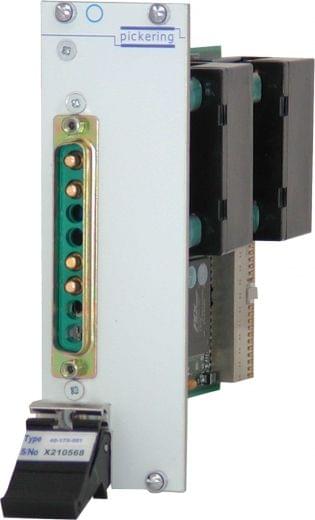

PXI 2x SPST Power Relay, 2 Slot - 40-170-001

Model 40-170 is available either as 2 x SPST High Power Relays, suitable for switching inductive/ capacitive loads up to 30A at 250VAC or as 2 x DPST switching up to 20A. Power Relay Modules are intended for switching heavy AC or DC loads or for slaving up to large external relays, contactors and solenoids.

  • 2 x SPST 30Amp Power Relays
  • 2 x DPST 20Amp Power Relays
  • Switch up to 30VDC/250VAC
  • 2 Slot PXI Module
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts SPST
Switch Type EMR
Poles 1
Max I (A) 30
Max V DC 30
Relays 2
Brand Pickering Interfaces
