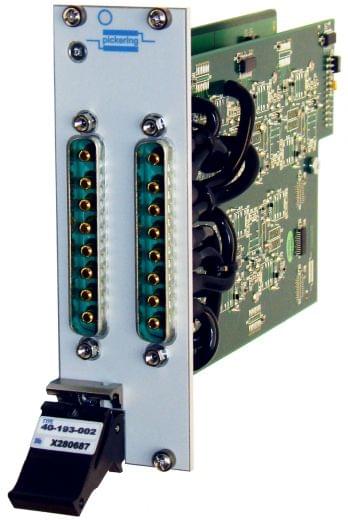

PXI 7-Chan 20A Fault Switch, Two Fault Buses - 40-193-002

The 40-193 is a 7 Channel Fault Insertion switch designed for the simulation of fault conditions in automotive systems. The module is capable of switching current up to 20A. It is designed to be able to insert different fault conditions between the test fixture and the equipment under test.

  • 7 Fault Insertion Channels
  • Simulation of Various Types of Electrical Fault, Enabling Rigorous Fault Testing
  • Choice of 1 or 2 Fault Buses
  • 20A Hot or Cold Switching
  • Switch up to 16 Volts DC
  • 10A Continuous Rating
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Fault Buses 2
Max I (A) 20
Max V DC 16
Channels 7
Brand Pickering Interfaces
