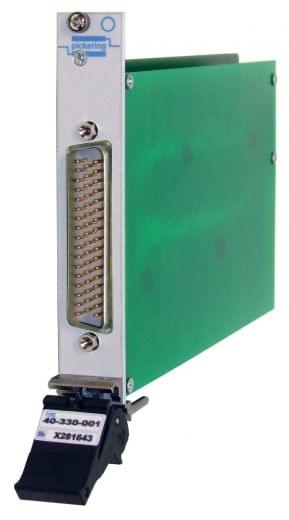

PXI 24xSPST High Voltage Power Relay Module - 40-330-001

The Pickering Interfaces 40-330 High Voltage Power Relay Module is suitable for applications requiring high voltage power relay switching with high density. It features current handling up to 5A, 1000VDC/1000VAC peak cold switching and 110VDC/250VAC hot switching. It is configured as a bank of 12, 18 or 24 separate Single Pole Single Throw (SPST) relays. Connections are made via a front panel mounted 50-pin (24xSPST) or 37-pin (18 and 12xSPST) high voltage D-Type connector.

Features
  • 12, 18 or 24 SPST Relays per Module
  • Cold Switch up to 750VDC/750VAC peak Working Voltage (1000VDC/1000VAC peak Typical)
  • Hot Switch up to 110VDC/250VAC
  • 5A Hot Switch Current
  • Maximum Power 150W/1250VA
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts SPST
Switch Type EMR
Poles 1
Max I (A) 5
Max V DC 750
Relays 24
Brand Pickering Interfaces
