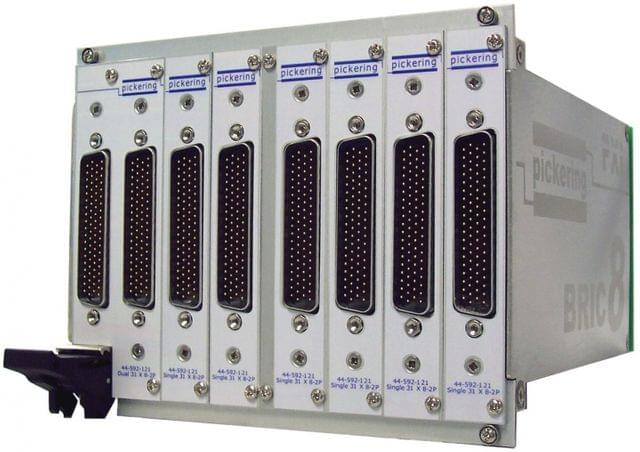

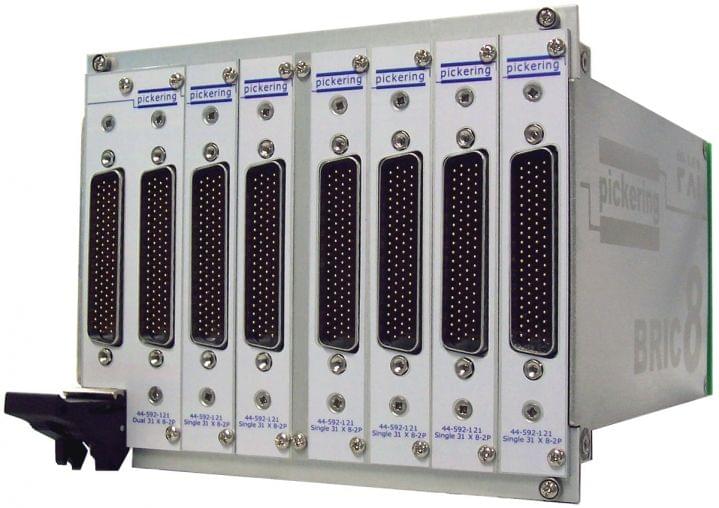

Dual 31x4 2pin BO PXI BRIC8 FIBO Matrix - 40-592A-111

The 40-592A FIBO (Fault Insertion Break-Out) Matrix Module is a large-scale high density switching matrix based on the Pickering BRIC format. The fault insertion BRICs are designed for applications requiring the simulation of a variety of faults in complex, high pin count, applications involving sensors and control units. Typical faults that can be simulated are open-circuits, short circuits to ground or battery, or short-circuits between input/output lines. Typical applications are in automotive and aerospace industries which involve safety or mission critical systems that have to behave predictably when cabling or sensor faults occur.

Features
  • Integrated PXI Matrix Module With Built In High Performance Screened 8-Channel Analog Bus
  • 2 or 3-Pin Breakout Configurations For Fault Simulation and Specialist Test Applications
  • Very High Density With a Dual 248x4 Matrix in an 8-Slot Module (Including 2-Pin Breakout)
  • Load Just The Number of Daughter Switch Cards You Need For Your Application
  • Uses High Reliability Ruthenium Reed Relays for Maximum Performance
  • Switches Up To 150 Volts, 1A, 20W
  • VISA, IVI & Kernel Drivers Supplied For Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type Reed
X Size 31
Y Size 4
Fault Buses 8
Max I (A) 1.2
Max V DC 150
Channels 31
Brand Pickering Interfaces
