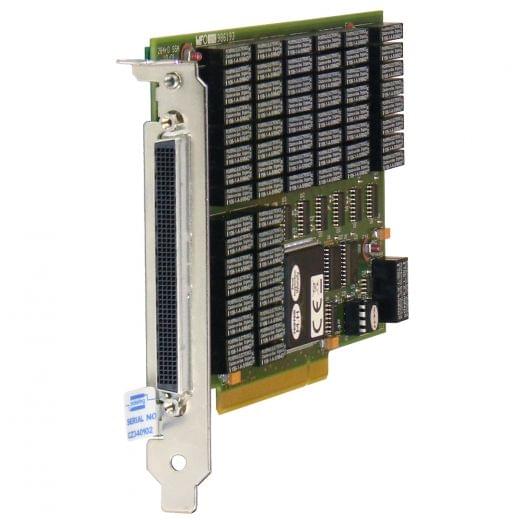

PCI 32xSPST Reed Relay Card - 50-115A-021
This is the 32xSPST version of our 50-110A/50-115A range of reed relay switching cards which are available in both Changeover (SPDT) and Normally Open (SPST & DPST) configurations. Connections are made via a front panel 200 pin female LFH connector. General purpose reed relays are suitable for the construction of small switching networks, for slave switching larger relays or for operating external devices (e.g. lamps, solenoids etc.).
Features
  • 25, 32, 50 or 64 Reed Relays Per Card
  • SPST, DPST and SPDT Configurations
  • Ruthenium Reed Relays Suitable For Low Level Signals
  • Uses High Reliability Pickering Reed Relays For Maximum Performance
  • Fast Operating Speed 500µs Typical
  • Switch up to 150VDC/100VAC, 1A with 10W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by eBIRST Switching System Test Tools
Platform PCI
Relay Contacts SPST
Switch Type Reed
Poles 1
Max I (A) 1
Max V DC 100
Relays 32
Brand Pickering Interfaces
