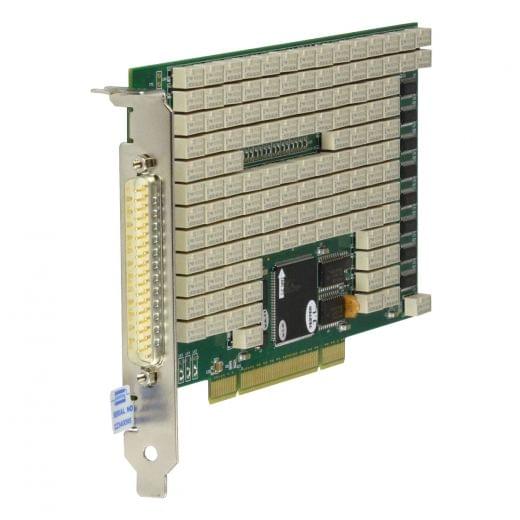

PCI 32x4 2Amp High Density Matrix Card - 50-528-001

The 50-527, 50-528 and 50-529 are a range of PCI single pole matrix cards supporting either 64 or 128 crosspoints using electro-mechanical relays. They are capable of switching voltages up to 300VDC/250VAC and current up to 2A. The modules are designed for switching medium voltage and power signals. The user signal connection is via a robust 37-pin D-Type connector that is fully supported by the wide range of Pickering Interfaces cable and connector accessories.

  • High Density PCI 2A Matrix Cards With Up To 128 Crosspoints
  • 32x2, 32x4, 16x4, 16x8 and 8x8 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Uses Gold-Plated Contact Electro-mechanical 1-Pole Relays
  • Based Upon 40-527/528/529 PXI Switching Technology
  • VISA/IVI Drivers Supplied for Windows XP/Vista/7/8
  • Supported by eBIRST Switching System Test Tools
Platform PCI
Switch Type EMR
X Size 32
Y Size 4
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
