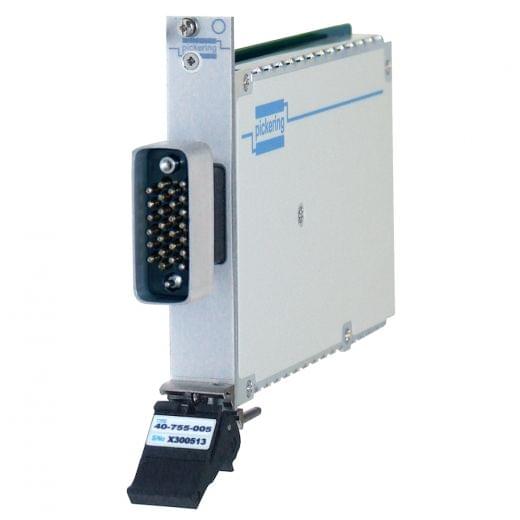

5x 4 to 1,500MHz,50Ohm,PXI RF Multiplexer,Multiway Connectors, 40-755-005

The 40-75 Ohm is a 50 Ohm high density RF multiplexer (4 to 1) array available with up to 10 MUXs in a single PXI module. The 40-75 Ohm is available with two connector options, an SMB connector that provides a frequency range of 1.8GHz and is available in single or dual PXI slots, or a Souriau multiway connector which limits the bandwidth to 50 OhmMHz but offers a high density solution occupying just one PXI slot. The RF switch design is identical in each case. Need a higher performance, higher BW solution? Try the 40-872 Quad 4 to 1 MUX.

Features
  • 1.8GHz Switching (SMB version)
  • SMB and Multiway Connector Versions
  • Low Cost High High Performance
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Type RF Multiplexer
Z (Ohm) 50
Switch Type EMR
Banks 5
Poles 1
Frequency Range DC - 500MHz
Channels 4
Function Multiplexer
Brand Pickering Interfaces
