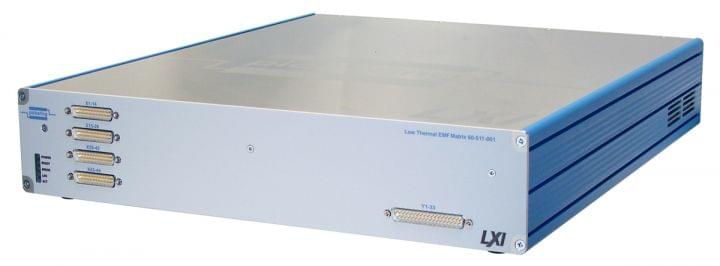

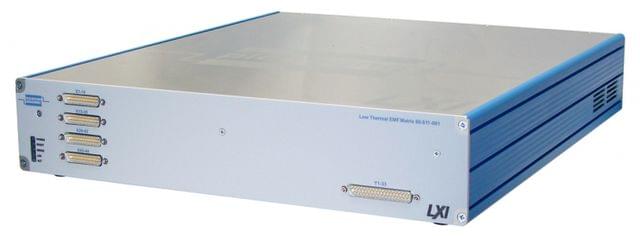

LXI 28x33 EMR Low Thermal EMF Matrix - 60-511-003
This high density 1-pole matrix has excellent thermal stability and substantially reduced thermal EMF figures when compared to a conventional switching matrix. Typical applications include Signal routing in ATE Selecting thermocouple inputs Switching amplifier gain circuits High accuracy DC microvolt measurements. These modules are fully programmable via the LAN interface using our generic switch driver. Industry standard (W3C) web browsers can be used to access and change configuration information and provide access to the soft front panels. Ideal for applications where a simple start-up process is required and for applications requiring control over large distances.
|Max I (A)||1|
|Max V DC||200|
