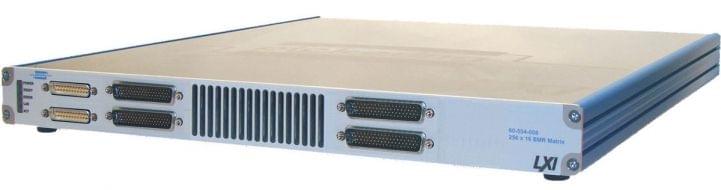

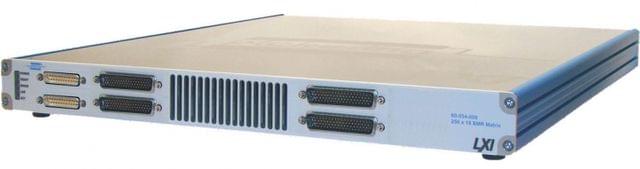

LXI 64x16 2A High-density Matrix with BIRST - 60-554-022

These high-density single pole LXI matrix modules are capable of switching up to 150VDC/100VAC, or 2A (60W max). The use of high-quality electro-mechanical relays offer high switching confidence and make it suitable for signal routing in large ATE systems. These matrix modules are constructed from 128x4 sub-assemblies, permitting the matrix to be supplied in a variety of sizes from 256x4 to 1024x4. Larger sizes can be easily achieved by linking multiple units together, for instance, two 1024x4 units can be linked to create a 2048x4 matrix.

Features
  • Up to 4096 crosspoints
  • This range features single matrix sizes from 64x16 to 256x16
  • Easily expanded to larger matrix sizes
  • Uses high-quality electro-mechanical relays
  • Switch up to 300VDC/250VAC and up to 60W max power
  • Maximum switch current of 2A
  • 1U rack mountable enclosure
  • LXI Standard 1.4 compliant
  • IVI and Direct I/O drivers
  • Supported by our Diagnostic Test Tools
Platform LXI
Switch Type EMR
X Size 64
Y Size 16
Banks 1
Poles 1
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
