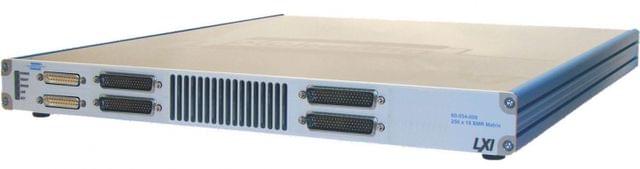

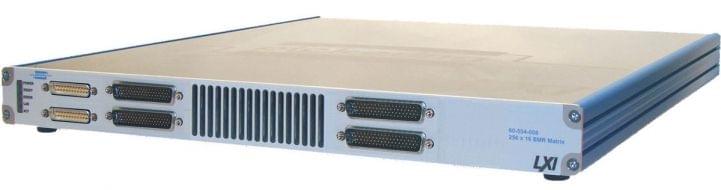

LXI 192x16 2A High-density Matrix with BIRST - 60-554-026
These high-density single pole LXI matrix modules are capable of switching up to 150VDC/100VAC, or 2A (60W max). The use of high-quality electro-mechanical relays offer high switching confidence and make it suitable for signal routing in large ATE systems. These matrix modules are constructed from 128x4 sub-assemblies, permitting the matrix to be supplied in a variety of sizes from 256x4 to 1024x4. Larger sizes can be easily achieved by linking multiple units together, for instance, two 1024x4 units can be linked to create a 2048x4 matrix.
|Max I (A)||2|
|Max V DC||300|
