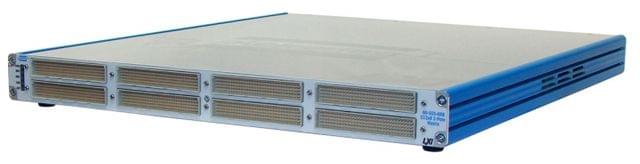

LXI 256x8 2-Pole 2A High-density Matrix With BIRST - 60-555-024
VARIANT | SELLER | PRICE | QUANTITY |
---|
These high-density single pole LXI matrix modules are capable of switching up to 150VDC/100VAC, or 2A (60W max). The use of high-quality electro-mechanical relays offer high switching confidence and make it suitable for signal routing in large ATE systems. These matrix modules are constructed from 128x4 sub-assemblies, permitting the matrix to be supplied in a variety of sizes from 256x4 to 1024x4. Larger sizes can be easily achieved by linking multiple units together, for instance, two 1024x4 units can be linked to create a 2048x4 matrix.
Platform | LXI |
Switch Type | EMR |
X Size | 256 |
Y Size | 8 |
Banks | 1 |
Poles | 2 |
Max I (A) | 2 |
Max V DC | 300 |
Brand | Pickering Interfaces |
