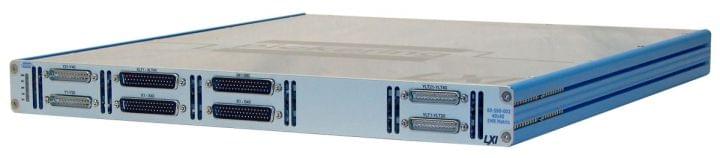

LXI 40x20 High-density Matrix - 60-590-001

These high-density single pole LXI matrix modules are capable of switching up to 150VDC/100VAC, or 2A (60W max). The use of high-quality electro-mechanical relays offer high switching confidence and make it suitable for signal routing in large ATE systems. These matrix modules are constructed from 128x4 sub-assemblies, permitting the matrix to be supplied in a variety of sizes from 256x4 to 1024x4. Larger sizes can be easily achieved by linking multiple units together, for instance, two 1024x4 units can be linked to create a 2048x4 matrix.

  • Single Pole High-Density Matrix
  • 40x20 and 40x40 Versions
  • Loop-Thru Connections For Easy Expansion
  • Isolation Switching For Maximum Bandwidth and Contact Life
  • Uses High-Quality Electromechanical Relays
  • Switch Up To 300VDC/250VAC With 60W Maximum Power
  • Maximum Switch Current of 2A
  • 1U Rack Mountable Enclosure
  • Fully Compliant To 1.4 LXI Standard
  • IVI and Direct I/O Drivers
  • Built-In Diagnostics
Platform LXI
Switch Type EMR
X Size 40
Y Size 20
Banks 1
Poles 1
Max I (A) 2
Max V DC 180
Brand Pickering Interfaces
