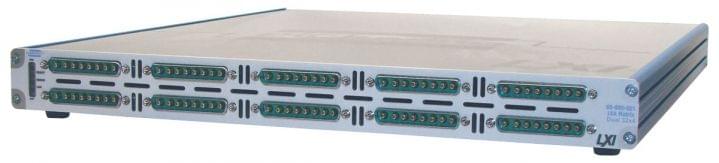

LXI 32x4, 10A, 1-pole Matrix - 60-600-007

A high power single pole matrix module capable of switching up to 400VDC/250VAC, 10A (300W/2500VA max power) The use of high quality electro-mechanical relays offer high switching confidence and make it suitable for signal routing in large ATE systems. The 60-600 range is available in both single and dual configurations size range from single 16x4 to 16x16 and dual 16x8 to 32x4.

Features
  • Available in a variety of configurations
  • 10A current rating With 300W/2500VA max power
  • Hot switch to 125VDC/250VAC, cold switch to 400VDC/250VAC
  • Uses electro-mechanical power relays
  • 1U rack mountable enclosure
  • LXI Standard 1.4 compliant
  • IVI and Direct I/O drivers
Platform LXI
Switch Type EMR
X Size 32
Y Size 4
Banks 1
Poles 1
Max I (A) 10
Max V DC 400
Brand Pickering Interfaces
