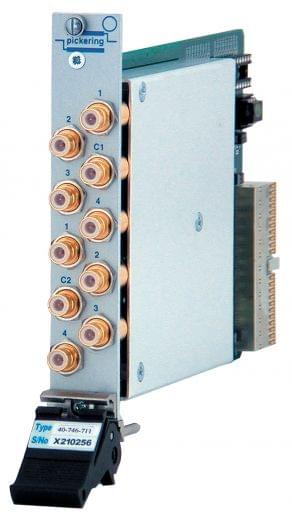

PXI Dual 4 to 1 RF Multiplexer 2GHz 75 Ohm 1.0/2.3

40-740, 40-745 and 40-746 RF Multiplexers are a range of Bi-Directional Multiplexers with bandwidth up to 2000MHz. They are arranged as Single 8 to 1, Dual 4 to 1 or Single 4 to 1 configurations, all with excellent Insertion Loss, VSWR and Isolation, in 50 Ohm or 75 Ohm versions with a wide choice of connectors. Applications include routing high frequency signals to and from oscilloscopes, analyzers, signal generators and synthesizers, telecoms tributary switching (from 2MBit/s to 155MBit/S),video/audio switching and switching high frequency logic signals.

Features

RF Multiplexer with 2GHz up to Bandwidth
50 Ohm and 75 Ohm Versions Available
Available as Single 8 to 1, Single 4 to 1 or Dual 4 to 1
Single 4 to 1 Version Available With Automatic Termination of Non-Selected Channels
Choice of Front Panel Mounted Coaxial Connectors
75 Ohm Version Suitable for Telecoms and High Quality Video Switching
VISA, IVI and Kernel Drivers Supplied for Windows
Supported by PXI or LXI Chassis
