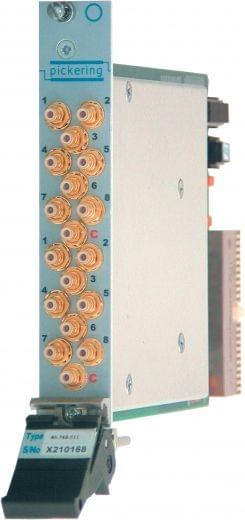

Dual 8 to 1,1GHz,75Ohm,PXI Multiplexer,SMB, 40-748-751
VARIANT | SELLER | PRICE | QUANTITY |
---|
The 40-748 is a dual 8 to 1 RF MUX available in 50 Ohm or 75 Ohm versions occupying a single PXI slot. The module is available with SMB or SMA connectors for 50 Ohm versions or, 1.0/2.3 or Mini SMB connectors for 75 Ohm versions. Applications for the 40-748 include routing high frequency signals to and from oscilloscopes, analyzers, signal generators and synthesizers, telecoms tributary switching, video/audio switching and switching high frequency logic signals.
Platform | PXI |
Type | RF Multiplexer |
Z (Ohm) | 75 |
Switch Type | EMR |
Banks | 2 |
Poles | 1 |
Frequency Range | DC - 1GHz |
Channels | 8 |
Function | Multiplexer |
Brand | Pickering Interfaces |
