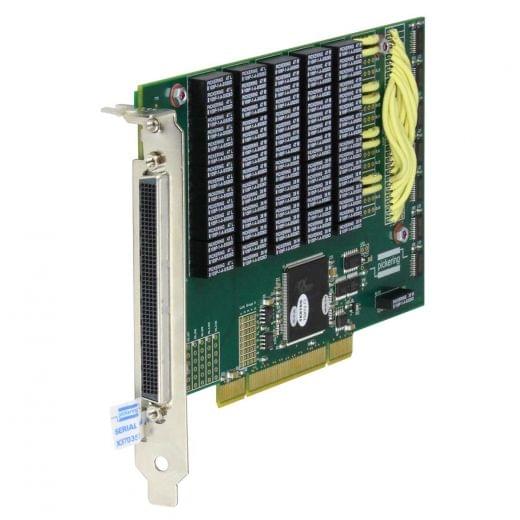

PCI 5-Channel 32-Pole Very High Density Multiplexer - 50-670A-022-5/32

The 50-670A series of very high density multiplexer cards feature a wide range of switching configurations. Typical applications include signal routing in ATE and data acquisition systems.
The 50-670A shares exactly the same architecture as the established PXI 40-670A module

Features
  • Very High Density Multiplexer
  • Up to 198 Switch Pins Available with 1, 2, 4, 8, 16 or 32 Pole Switching Formats
  • All Versions Use High Reliability Pickering Reed Relays
  • Fast Operating Speed <500µs
  • Hot Switch up to 100VDC/70VAC, Cold Switch up to 150VDC/100VAC
  • Carry Current 1.2A with 20W Max Power
  • Automatic Isolation Switches Reduce Capacitive Loading in Large Systems
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Shares Same Architecture As PXI 40-670A Module
  • Supported by eBIRST Switching System Test Tools
Platform PCI
Switch Type Reed
Poles 32
Max I (A) 1.2
Max V DC 150
Channels 5
Brand Pickering Interfaces
