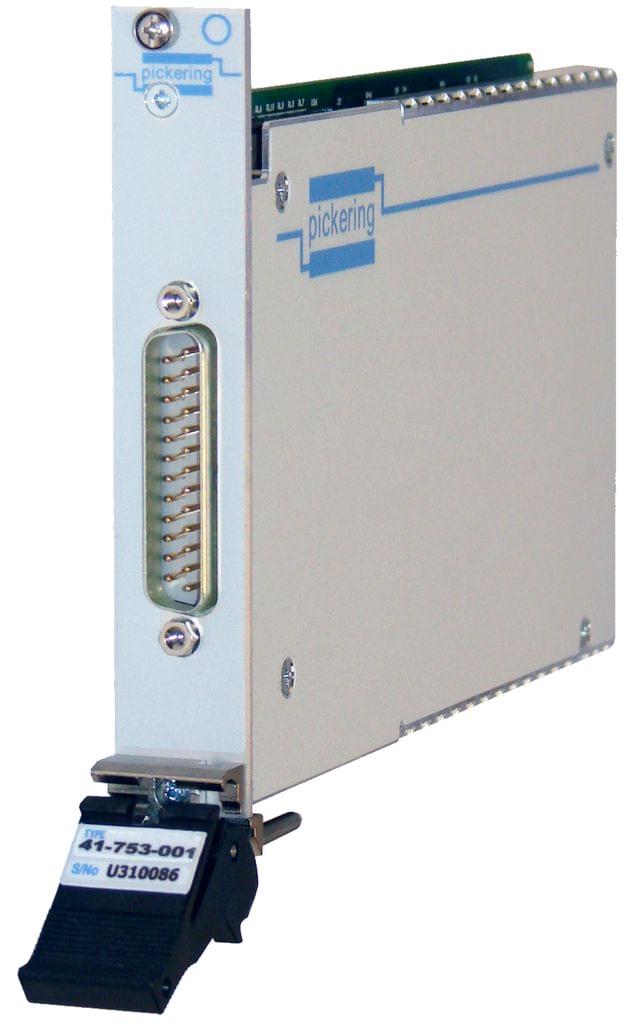

PXI 1-channel Battery Simulator - 41-753-001

The 41-753 is a battery simulator module that can be used to simulate the power supplies of cellular phones and other portable battery devices. It features fully floating output terminals that can deliver voltages up to 6 Volts. The fast responding remote sense connections allow the module to regulate the supply voltage at the device under test. The output terminals can float ±50V relative to the front panel ground to ensure the accurate simulation of battery operation.
A module can source or sink current to provide simulation of a battery supply or a battery under charge. The programmable current sink can be set to divert up to 0.5A of the load current, permitting the battery simulator to act as a net current sink when connected to a charger circuit. The 41-753 is capable of delivering up to 2.8 Amps into the load. The output resistance of the 41-753 can be programmed for values up to 1.15 ohms to simulate the effect of battery output resistance when connected to time varying loads.

Features
  • Single Slot Battery Simulator Module
  • Remote Voltage Sense
  • Isolated Output
  • Output Voltage up to 6V
  • Power Supplied From PXI Backplane
  • Programmable Output Resistance
  • Programmable Current Sink Capability to 0.5A For Charger Load Simulation
  • VISA and IVI Drivers Supplied For Windows XP/Vista/7/8 and Soft Front Panel
  • Supported by PXI or LXI Chassis
Channels 1
Output Voltage Range 0 to 6 Volts (at front panel)
Output Current Up to 2.8 Amps at 5.5V
Load Response Time 15µs
Brand Pickering Interfaces
