We Offer PXI chassis to meet every PXI application, they range from 8 to 19 3U slots. Selected chassis are available with optional low acoustic operation; suitable for office, laboratory or other environments where low audible noise is essential. These PXI chassis can be optimized to accept multi-slot modules, such as our BRIC™ matrix modules , while only occupying one electrical slot.

High performance PXI chassis range from 8 to 19 3U slots and are available with optional low acoustic operation

 PXI CHASSIS
Configuration Overall Size  Number of
Power Supplies		 Power
Rating		 Input Voltage Options Fans PXI
Slots 		 Part No.
3U PXI Mainframe  4U Half Rack 1 350W 100-240VAC 2 8 40-922-001
4U Full Rack  1 600W 90-264VAC 3 19 40-923A-001
2
Hot Swappable		 175W
each
Supply		 3 8 40-908-001
3 x 3 speed 40-908-101
3 x low noise 40-908-201
4 14 40-914-001
4 x 3 speed 40-914-101
4 x low noise 40-914-201

Marvin Test Solutions offers the broadest selection of PXI chassis in the industry. Our portfolio of chassis products includes both the 3U and 6U formats, as well as high power chassis configurations. Except as noted, all MTS chassis feature a single controller slot, maximizing the number of peripheral slots for instrumentation and switching. Whatever your specific test system requirements might be, MTS has a PXI chassis that can accommodate both your electrical and mechanical chassis requirements.
MODEL SLAVE / MASTER FORMAT: 6U, 6U/3U, 3U # OF PXI PERIPHERAL SLOTS CABLE TRAY HIGH POWER
GX7000 Master 6U 19
GX7010 Slave 6U 19
GX7002 Master 6U 19 X
GX7012 Slave 6U 19 X
GX7005* Master 6U 19 X X
GX7015* Slave 6U 19 X X
GX7016** Slave 6U 19 X
GX7017*** Slave 6U 19 X X
GX7100 Master 6U / 3U 6 – 6U, 7-3U
GX7110 Slave 6U / 3U 6 – 6U, 7-3U
GX7102 Master 6U / 3U 6 – 6U, 7-3U X
GX7110B-2 Slave 6U / 3U 6 – 6U, 7-3U
GX7112 Slave 6U / 3U 6 – 6U, 7-3U X
GX7100e Master 6U / 3U - PXIe 7 – 6U, 6-3U
GX7110e Slave 6U / 3U - PXIe 7 – 6U, 6-3U
MODEL SLAVE / MASTER FORMAT: 6U, 6U/3U, 3U # OF PXI PERIPHERAL SLOTS CABLE TRAY HIGH POWER
GX7200 Master 3U - PXIe 20
GX7210 Slave 3U - PXIe 20
GX7202 Master 3U - PXIe 20 X
GX7212 Slave 3U - PXIe 20 X
GX7205 Master 3U - PXIe 20 X
GX7215 Slave 3U - PXIe 20 X
GX7300 Master 3U 19
GX7310 Slave 3U 19
GX7302 Master 3U 19 X
GX7305 Master 3U 19 X
GX7315 Slave 3U 19 X
GX7600 Master 3U – PXIe 5 PXI, 2 hybrid, 1 PXIe timing
GX7610 Slave 3U – PXIe 5 PXI, 2 hybrid, 1 PXIe timing

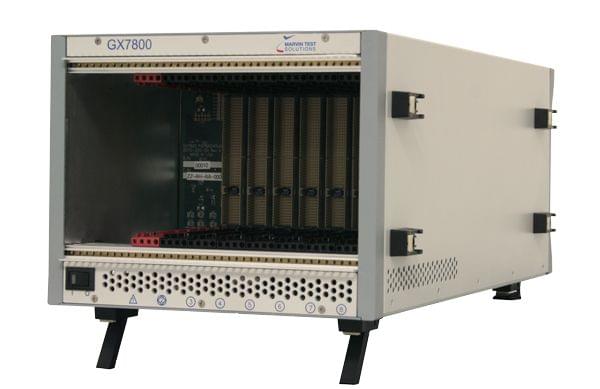

GX7800 Master or Slave 3U 8
Features
  • Upto 20 slots - supporting a 3U (embedded or remote) PXI controller and 19 3U PXI or cCPI instruments
  • Built-in peripherals (hard disk drive, and a DVD-RW drive) for embedded controller configurations
  • Integral Smart functions provide per slot temperature monitoring, system power supply monitoring, and PXI trigger mapping
  • 755 W and 1600 W system power supply configurations
  • Cable tray, recessed instrumentation, cable routing, and hinged front interface assembly configurations are available for mass interconnect interfaces
