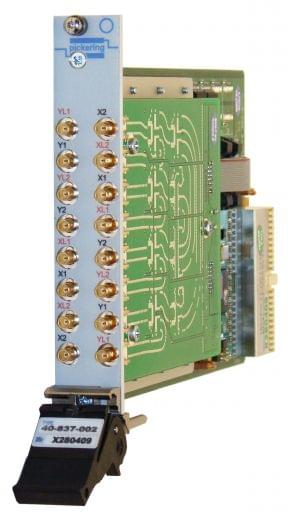

The 40-837 is a 75Ohm 2x2 RF matrix available with 1 or 2 banks in a single PXI slot. Loop-thru connections are provided on both the X and Y axis allowing the attachment of terminations for unused signals or for expansion to other matrices. Larger matrices are easily built with varied X and Y dimensions, such as 8x2 and 4x4 using multiple 40-837 modules.

Features
  • 2.5GHz RF Matrix
  • Single or Dual 2x2 Matrix
  • Loop-Thru on X and Y Axis
  • SMB or MCX Connector Versions
  • High Performance Low Cost
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Switch Type RF Switch
Platform PXI
Z (Ohm) 75
X Size 2
Y Size 2
Max f (MHz) 2500
Function Matrix
Banks 1
Brand Pickering Interfaces
