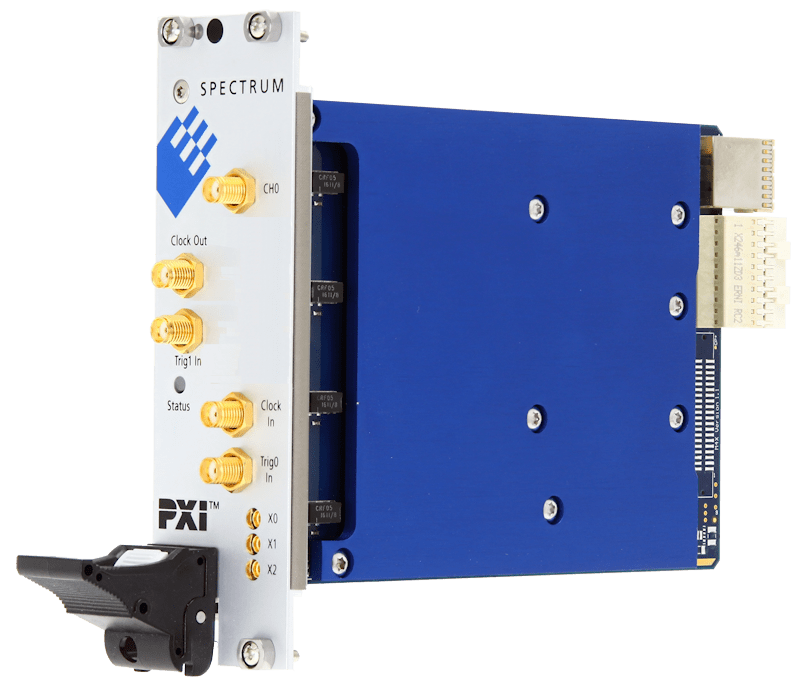

1Ch,8 Bit,500 MHz,1.25 GS/s,PXI Express Digitizer, M4x.2210-x4
The 9 models of the M4x.22xx-x4 Express series are designed for the high speed data acquisition. Each of the input channels has its own A/D converter and its own programmable input amplifier. This allows the recording of signals simultaneously on all channels without any phase delay between them. The extremely large on-board memory allows long time recording even with the highest sampling rates.
The PXIe digitizers feature a interface with PCI Express x4 Gen 2 interface that offers outstanding data streaming performance. The interface and Spectrum’s optimized drivers enable data transfer rates in excess of 1.7 GB/s so that signals can be acquired, stored and analyzed at the fastest speeds. While the cards have been designed using the latest technology they are still software compatible with the drivers from earlier Spectrum digitizers. So, existing customers can use the same software they developed for a 10 year old 200 kS/s multi-channel card and for an M4x series 500 MS/s high resolution digitizer.
|Samplerate (Max)||1.25 GS/s|
|Input Ranges||+/-200 mV to +/-2.5 V|
|User Offset||Not Available|
|Memory (Max)||4 GS|
|Brand||Spectrum Instrumentation GmbH|
