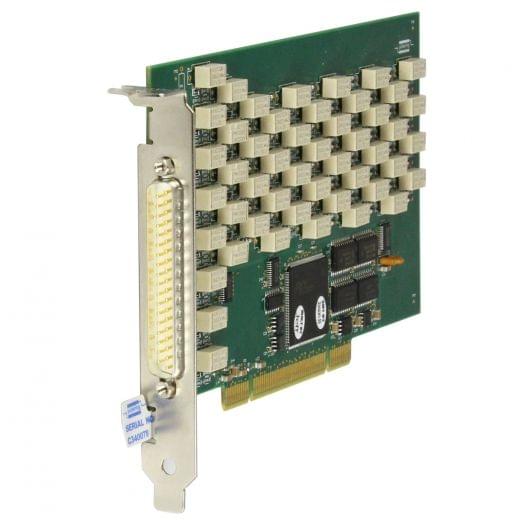

2-Ch,1.5Ohm to 1.02kOhm PCI Resistor Card, 50-293-021
VARIANT | SELLER | PRICE | QUANTITY |
---|
The 50-293 is a Programmable Resistor card with either two channels of 16-bit or four channels of 8-bit resistor chains in a single PCI card. The card is ideal for simulating sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications. The 50-293 can also be supplied with 8xSPDT electromechanical relays. These relays can be used for extending the resistor chain or adding additional fault conditions. The associated calibration cable for this product is available for purchase as 40-975-037-02-1m
Type | Standard Resistor |
Platform | PCI |
Resistance Range | 1.5Ohm to 1.02kOhm |
Accuracy (%) | 1 |
Resolution (Ohm) | 0.25 |
Channels | 2 |
Brand | Pickering Interfaces |
