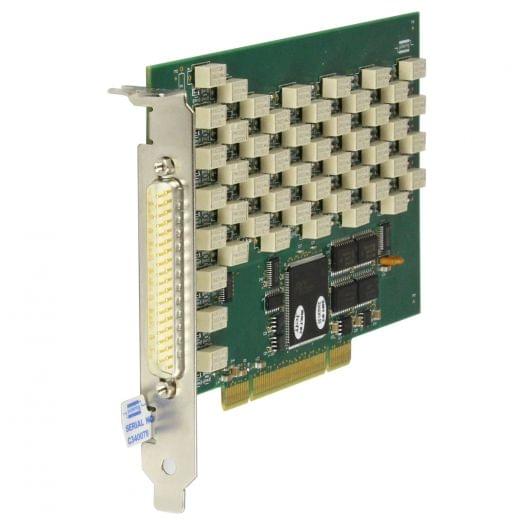

2-Ch,1.5Ohm to 4.09kOhm PCI Resistor Card, 50-293-023

The 50-293 is a Programmable Resistor card with either two channels of 16-bit or four channels of 8-bit resistor chains in a single PCI card. The card is ideal for simulating sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications. The 50-293 can also be supplied with 8xSPDT electromechanical relays. These relays can be used for extending the resistor chain or adding additional fault conditions. The associated calibration cable for this product is available for purchase as 40-975-037-02-1m

Features
  • Dual 16-Bit or Quad 8-Bit Resistor Card
  • Fitted with Electro-mechanical Relays
  • Short and Open Simulation
  • Simple Software Control Through Resistance Calls
  • Provides Fully Isolated Variable Resistors
  • Option of Added SPDT Uncommitted Relays
  • Special Versions With Non Standard Resistors Built To Order
  • VISA & Kernel Drivers Supplied for Windows XP/Vista/7/8 Plus Soft Front Panel
Type Standard Resistor
Platform PCI
Resistance Range 1.5Ohm to 4.09kOhm
Accuracy (%) 1
Resolution (Ohm) 1
Channels 2
Brand Pickering Interfaces
