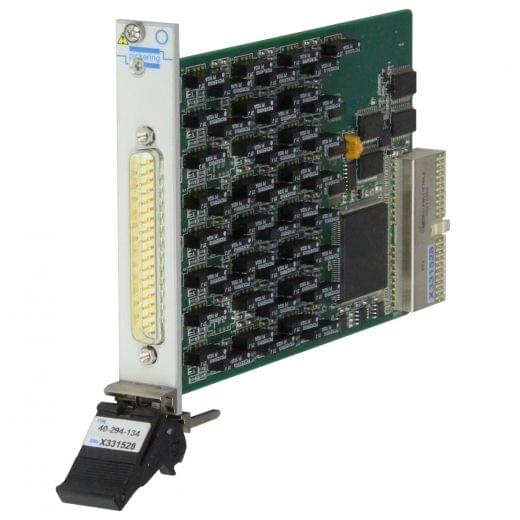

2-Ch,3Ohm to 131kOhm,0.5W,PXI Resistor Module,40-294-034

These PXI Programmable Resistor modules are available with either two channels of 16-bit, two channels of 12-bit or four channels of 8-bit resistor chains in a single 3U PXI module. The module is ideal for simulating sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications. The 40-294 can also be supplied with 8xSPST reed relays. These uncommitted relays have a number of uses, including extending the resistor chain, adding additional fault conditions and providing the functionally of a resistor module and an uncommitted relay module in a single PXI slot. Associated calibration cable is available here

Features
  • Dual or Quad Resistor Module
  • Fitted With Pickering Reed Relays, Providing Superior Speed of Operation and Module Life
  • Short and Open Simulation
  • Simple Software Control Through Resistance Calls
  • Provides Fully Isolated Variable Resistors
  • Option of Added SPST Uncommitted Relays
  • Option of Increasing The Length of Resistor Channels
  • Special Versions With Non Standard Resistors Built To Order
  • VISA & Kernel Drivers Supplied for Windows XP/Vista/7/8 Plus Soft Front Panel
  • Supported by PXI or LXI Chassis
Type Standard Resistor
Platform PXI
Accuracy (%) 1
Resolution (Ohm) 2
Channels 2
Power Rating 0.5W
Resistance Range 3Ohm to 131kOhm
Brand Pickering Interfaces
