Dual32x4,2-Pole,Switching PXI Matrix,40-534A-022

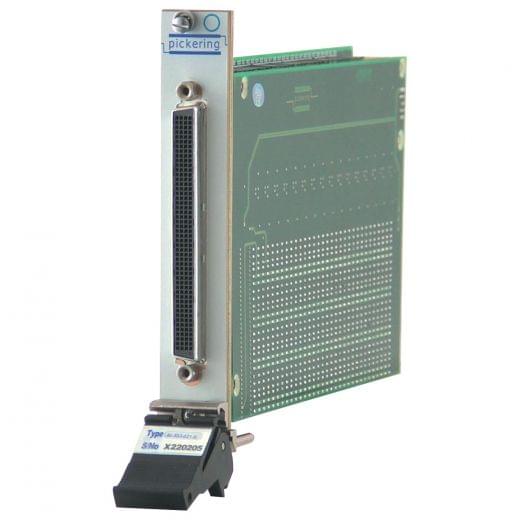

Model 40-534A-022 is a very high density dual 2-pole 32x4 matrix module. It is also available in 1-pole or 1-pole screened reed relay formats: Typical applicationsinclude signal routing in Functional ATE and data acquisition systems. These PXI matrix modules are constructed using high reliability Sputtered Ruthenium Reed Relays, offering 109 operations to give maximum switching confidence with long life and stable contact resistance. Larger matrices may be constructed bytructed by daisy chaining the common signals from multiple modules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.

  • 1-Slot PXI (CompactPCI) Card
  • 1-pole or screened versions also available
  • Large matrices built using multiple cards
  • Uses high reliability Pickering ruthenium reed relays for maximum performance
  • Fast operating speed <1000us
  • Switch up to 150VDC/100VAC with 10W max power
  • Max switch current 0.5A
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
X Size 32
Y Size 4
Banks 2
Poles 2
Max I (A) 0.5
Max V DC 150
Brand Pickering Interfaces
