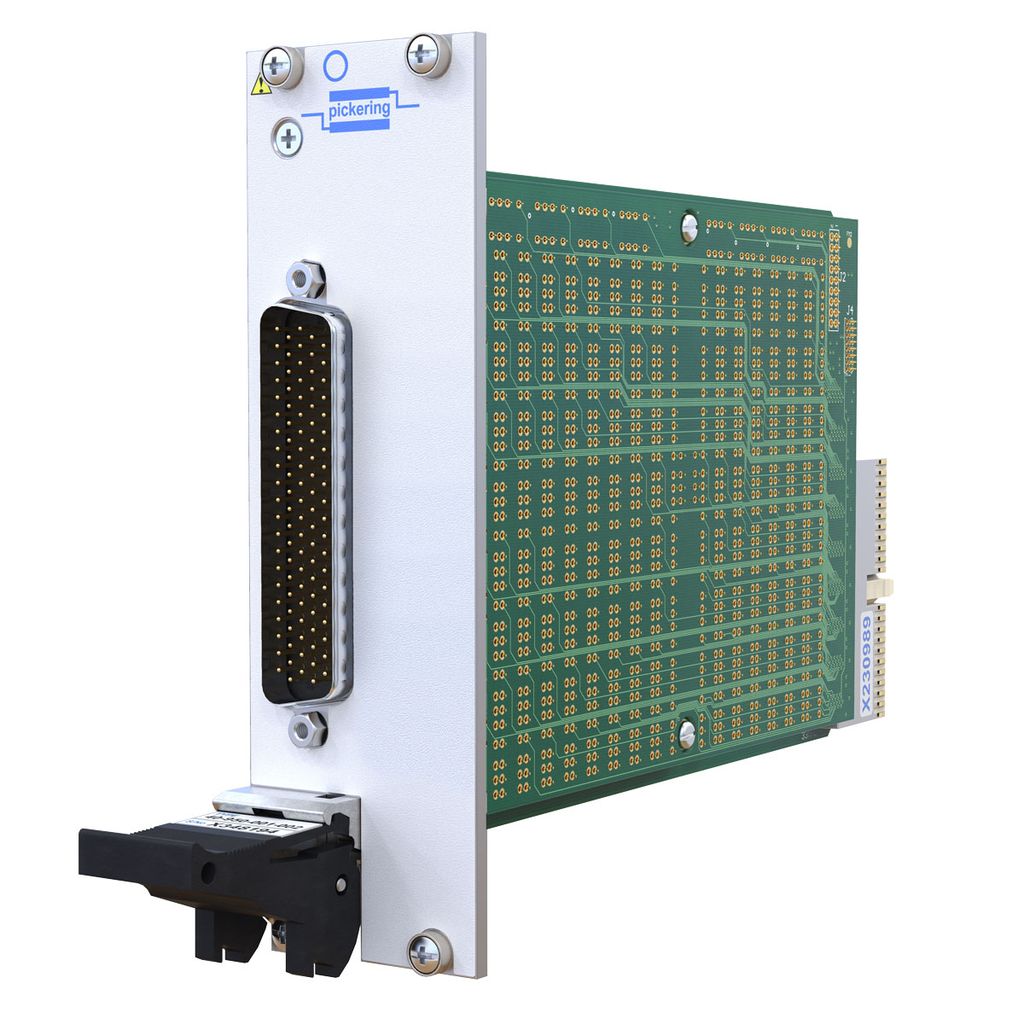

PXI/PXIe 16x8 2A 2-Pole High Density Matrix Module - 40-588-212

PXI/PXIe 16x8 2A 2-Pole High Density Matrix Module - 40-588-212

The 40-588-222 is a high density 32x8 2-pole PXI matrix module capable of switching up to 2 A at 220 VDC/250 VAC. The module is in 2-slot format and is constructed using quality electromechanical relays for high switching confidence. A smaller 16x8 2-pole version is also available.

The matrix has been optimised for applications that require high signal bandwidth. With careful matrix design and the use of isolation switching, the 40-588 has a bandwidth in the range of 35 MHz to 70 MHz depending upon path selected.

High Reliability and Ease of Use

The 40/42-588 matrix is formed from two 16x8 matrix daughter cards with their Y-connections linked via an internal analog bus. This is designed to minimize the cost and complexity of interconnecting cable assemblies.

Isolation Switching

The 40/42-588 daughter cards are fitted with isolation switches between the matrix Y-bus and the interconnecting analog bus. These ensure that only the required Y signal is routed to the front panel connector helping to preserve the bandwidth and crosstalk performance.

This module is supported by our eBIRST Switching System Test Tools

Features
  • Available as a PXI or PXIe Module
  • 16x8 2-Pole Configuration
  • High-Density in 2-Slot Format
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 220VDC/250VAC
  • Bandwidth up to 70MHz
  • Automatic Isolation Switching
  • VISA, IVI & Kernel Drivers Supplied for Windows
  • PXI Version Supported by PXI or LXI Chassis
  • PXIe Version Supported by PXI Hybrid or PXIe Chassis
  • Supported by our eBIRST Switching System Test Tools
Platform PXI/PXIe
Switch Type EMR
X Size 16
Y Size 8
Max V DC 220
Max I (A) 2
Banks 1
Poles 2
Brand Pickering Interfaces
