105x16,2-Pole,(7sub-cards),8-Slot BRIC,PXI,40-561A-122-105X16
Product Code: 40-561A-122-105X16
Brand: Pickering Interfaces
QTY:
Share this
Description

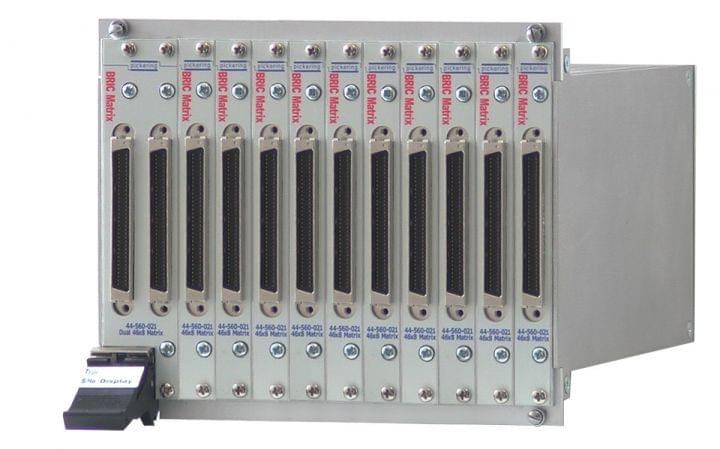

This version of our BRIC is part of a range of high-density PXI matrix modules. These modules are available in 2, 4 or 8 slot PXI sizes to suit all high performance matrix requirements and are constructed using instrumentation quality reed relays. With this high level of switching density, these PXI matrix modules allow a complete Functional ATE system to be housed in a single 3U PXI chassis. These BRIC matrix modules allow the use of lower cost 8 or 14-slot PXI chassis.
Specifications
| Platform | PXI |
| Switch Type | Reed |
| X Size | 105 |
| Y Size | 16 |
| Banks | 1 |
| Poles | 2 |
| Max I (A) | 0.5 |
| Max V DC | 150 |
| brand | Pickering Interfaces |
