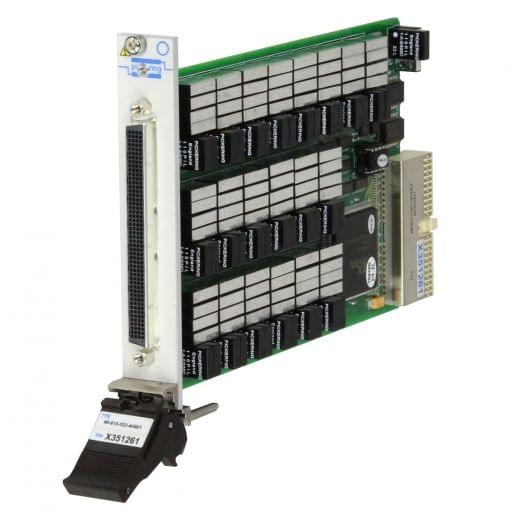

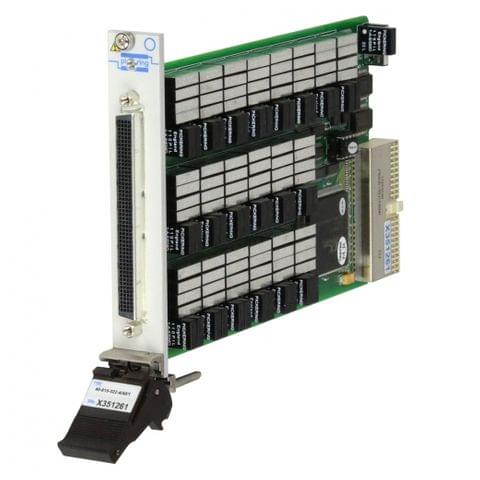

PXI 5 Banks of 16 Channel 2 Pole MUX - 40-615-022-5/16/2
VARIANT | SELLER | PRICE | QUANTITY |
---|
High density multiplexer modules featuring a wide range of switching configurations, especially useful where a large number of small multiplexers are required. Typical applications include signal routing in ATE and data acquisition systems. Each module is factory configured into one of the configuration modes. Connections are made via a front panel 200-pin connector.
Platform | PXI |
Switch Type | Reed |
Banks | 5 |
Poles | 2 |
Max I (A) | 1.2 |
Max V DC | 150 |
Channels | 16 |
Brand | Pickering Interfaces |
