PXI/PXIe MIL-STD-1553 Multiplexer, Dual 16-Channel, 2-Pole

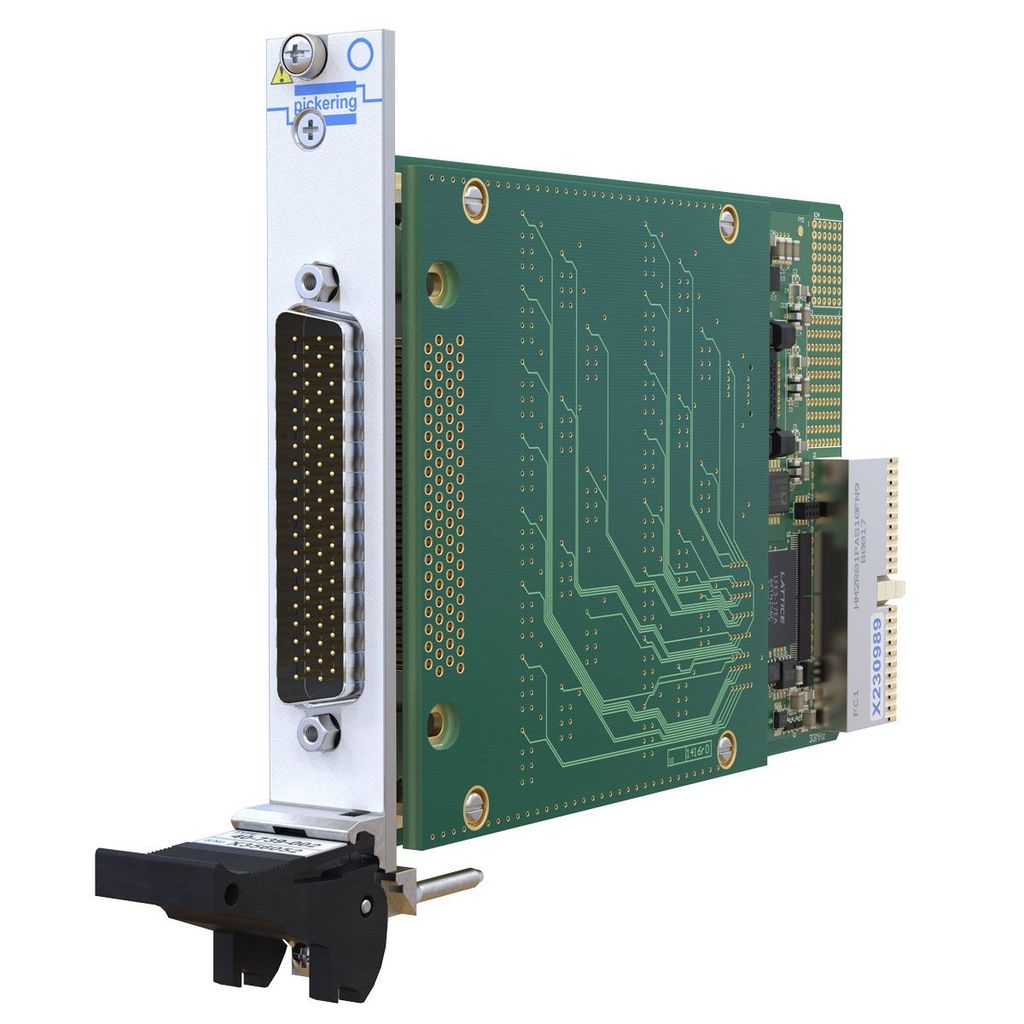

The 40-739-002 (PXI) and 42-739-002 (PXIe) are dual 16-channel 2-pole multiplexers designed specifically for physical layer multiplexing or demultiplexing differential signals that conform to the MIL-STD-1553 specification. The module can be supplied as a single or dual 16-channel 2-pole multiplexer with each signal pair having a controlled 78 Ohm differential impedance.

The module is ideal for the testing of multiple devices that use a serial communication interface, allowing the test system to select one target device from many. The design is bi-directional to permit use as a multiplexer or de-multiplexer with no impact on performance. The module uses long lifetime electromechanical relays characterized for use in communications systems.

  • Available as PXI or PXIe Modules
  • Multiplexer Designed For Differential Signals
  • Wide Differential Bandwidth
  • Dedicated Design for MIL-STD-1553 Applications
  • Controlled Differential Impedance of 78 Ohms
  • Designed to Minimize Path Resistance
  • Drivers supplied for Windows and Linux, plus support for Real-time systems
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI/PXIe
Switch Type EMR
Max I (A) 0.8
Max V DC 120
Poles 2
Banks 2
Channels 16
Brand Pickering Interfaces
