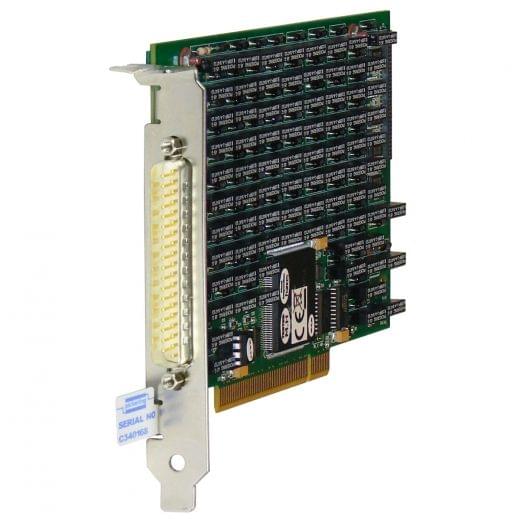

2Ch,16Bit,0 to 65kOhm PCI High Density Potentiometer Card , 50-296A-021-2/16
VARIANT | SELLER | PRICE | QUANTITY |
---|
The 50-296A series are Programmable Potentiometer versions of the 50-295A Programmable Resistor cards with up to 9-channels of 8-bit resolution resistor chains in a single PCI slot. The flexible architecture allows the card to also be supplied as 12-bit, 16-bit or 24-bit resolution versions for applications requiring finer resolution, greater resistance range or higher channel count. The card is ideal for simulating the sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications.
Type | Potentiometer |
Platform | PCI |
Resistance Range | 2Ohm to 65kOhm |
Accuracy (%) | 0.5 |
Resolution (Ohm) | 1 |
Channels | 2 |
Brand | Pickering Interfaces |
