LXI Dual 24x8 Video Matrix, SMB (75R) - 60-711-002

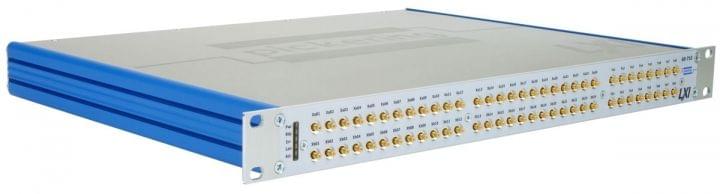

The 60-711 is a Dual 24x8 Video Matrix Module suitable for switching frequencies up to 25MHz. It has a characteristic impedance of 75 Ohm with the option of SMB or MCX connectors or, with a larger case size, BNC connectors. It is designed to provide a simple and scalable bidirectional matrix for video frequencies and is intended for the easy construction of high performance bidirectional matrix switching systems. Software configuration allows the 60-711 to be set as a dual 24 by 8 matrix, a single 48 by 8 matrix and other configurations.

Features
  • Dual 24x8 Video Matrix
  • Software Configurable As 48x8 Video Matrix
  • Low Cost Single 24x8 Option
  • 25MHz Bandwidth
  • High Density SMB or MCX Coaxial Connectors
  • Also Available With BNC Connectors
  • 75 Ohm Impedance Suitable For Video Switching
  • Rack Mountable Enclosure
  • LXI Standard 1.4 Compliant
  • IVI and Direct I/O Drivers
Type Video Matrix
Platform LXI
Function Matrix
Z (Ohm) 75
X Size 24
Y Size 8
Banks 2
Max f (MHz) 25
Brand Pickering Interfaces
