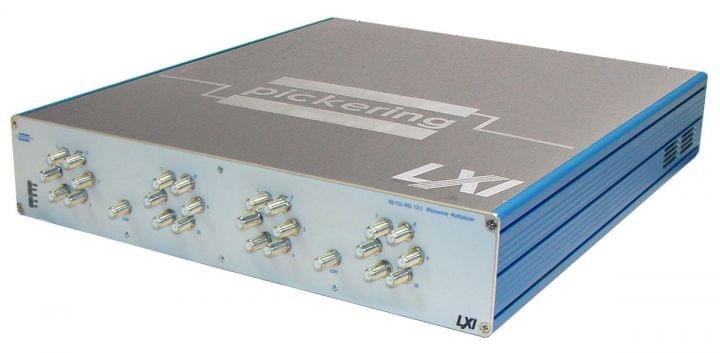

LXI Single Bank, 12:1 MUX 75 Ohm 1GHz F-type - 60-722-001

Our 60-722 High Isolation RF Multiplexer is suitable for switching 75 ohm signals up to 1GHz. With the choice of single or dual multiplexer banks each with 12 channels, it is ideal for constructing complex microwave switching systems for many applications. Connection is by high performance front panel mounted F-type connectors. These RF multiplexers have an extremely high level of performance, offering low VSWR, very high isolation, low loss and high power handling. They are ideal for switching 75 ohm coaxial systems that require a high performance from the HF band to low microwave frequencies.

Features
  • High Performance 12-Channel RF Multiplexer
  • Available With Single or Dual Multiplexer Banks
  • 1GHz Bandwidth
  • 75 Ohm Characteristic Impedance
  • Low Loss, High Isolation
  • Compact 2U Form Factor
  • Simple Remote Control Via LXI Interface
  • LXI Standard 1.4 Compliant
Type RF Multiplexer
Platform LXI
Function Mux
Z (Ohm) 75
Banks 1
Max f (MHz) 1GHz
Channels 12
Brand Pickering Interfaces
