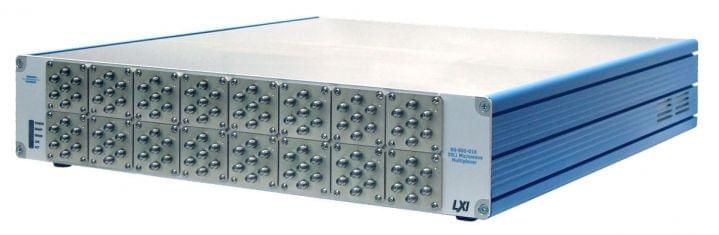

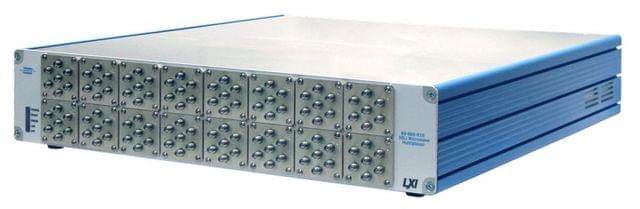

LXI 50Ohm 6:1 Microwave Multiplexer 4-bank 18GHz SMA - 60-800-004

Our 60-800 Microwave Multiplexer range is suitable for switching 50 ohm signals up to 26.5GHz. With the capability of supporting up to 16 banks of 6 channel multiplexers it is ideal for constructing complex microwave switching systems for many applications. Connection is by high performance front panel mounted SMA connectors. The Microwave Multiplexer is also available in terminated versions with up to 7 banks of 6 channel multiplexers. A 75 ohm version, the 60-820, is also available covering frequencies to 2.5GHz.

Features
  • High Performance 6-Channel RF Multiplexer
  • 18GHz Bandwidth (Unterminated Version) With 4, 8, 12 or 16 Multiplexer Banks
  • 18GHz Bandwidth (Terminated Version) With 2, 4, 6 or 7 Multiplexer Banks
  • 26.5GHz Bandwidth (Terminated Version) With 2, 4, 6 or 7 Multiplexer Banks
  • 50 Ohm Characteristic Impedance
  • Low Loss, High Isolation
  • Compact 2U Form Factor
  • Simple Remote Control Via LXI Interface
  • LXI Standard 1.4 Compliant
Type Microwave Multiplexer
Platform LXI
Function Mux
Z (Ohm) 50
Banks 4
Max f (MHz) 18GHz
Channels 6
Brand Pickering Interfaces
